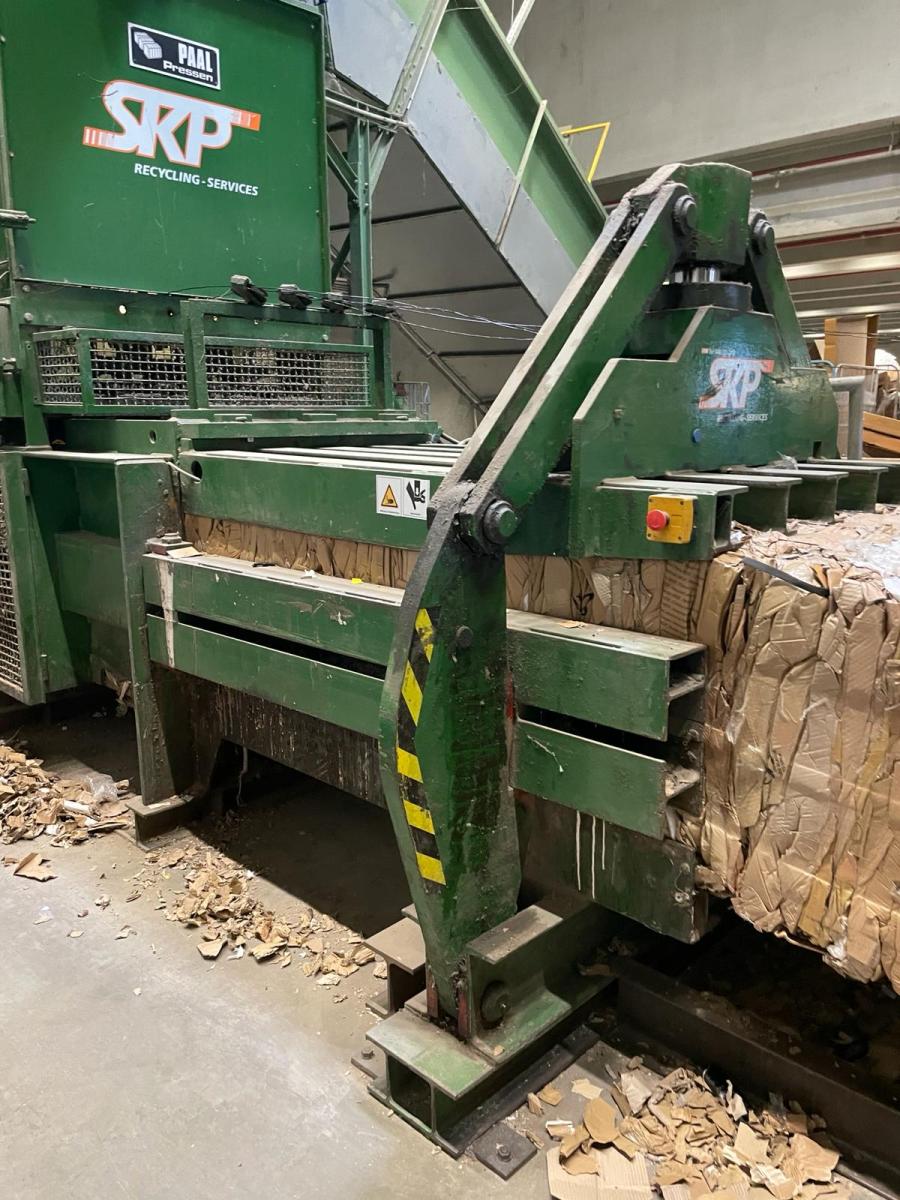

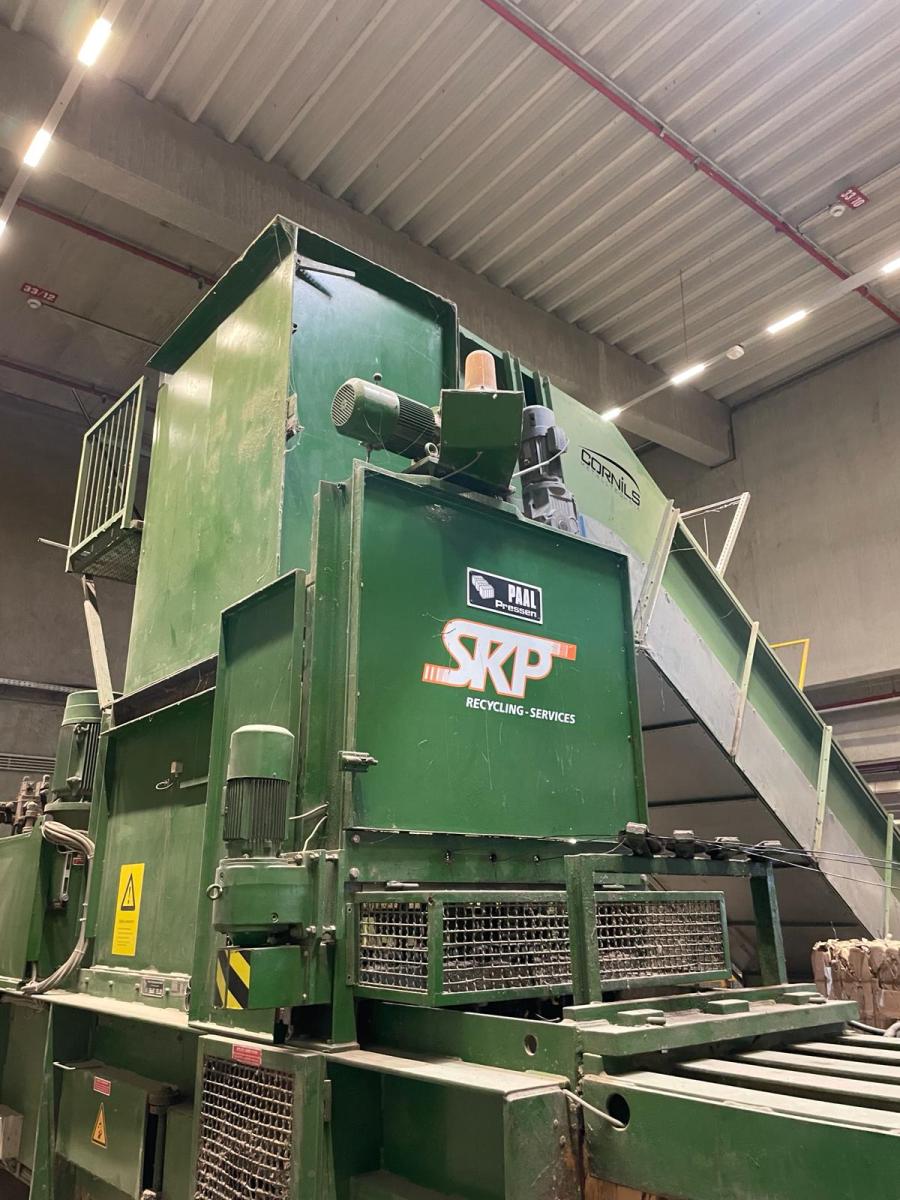

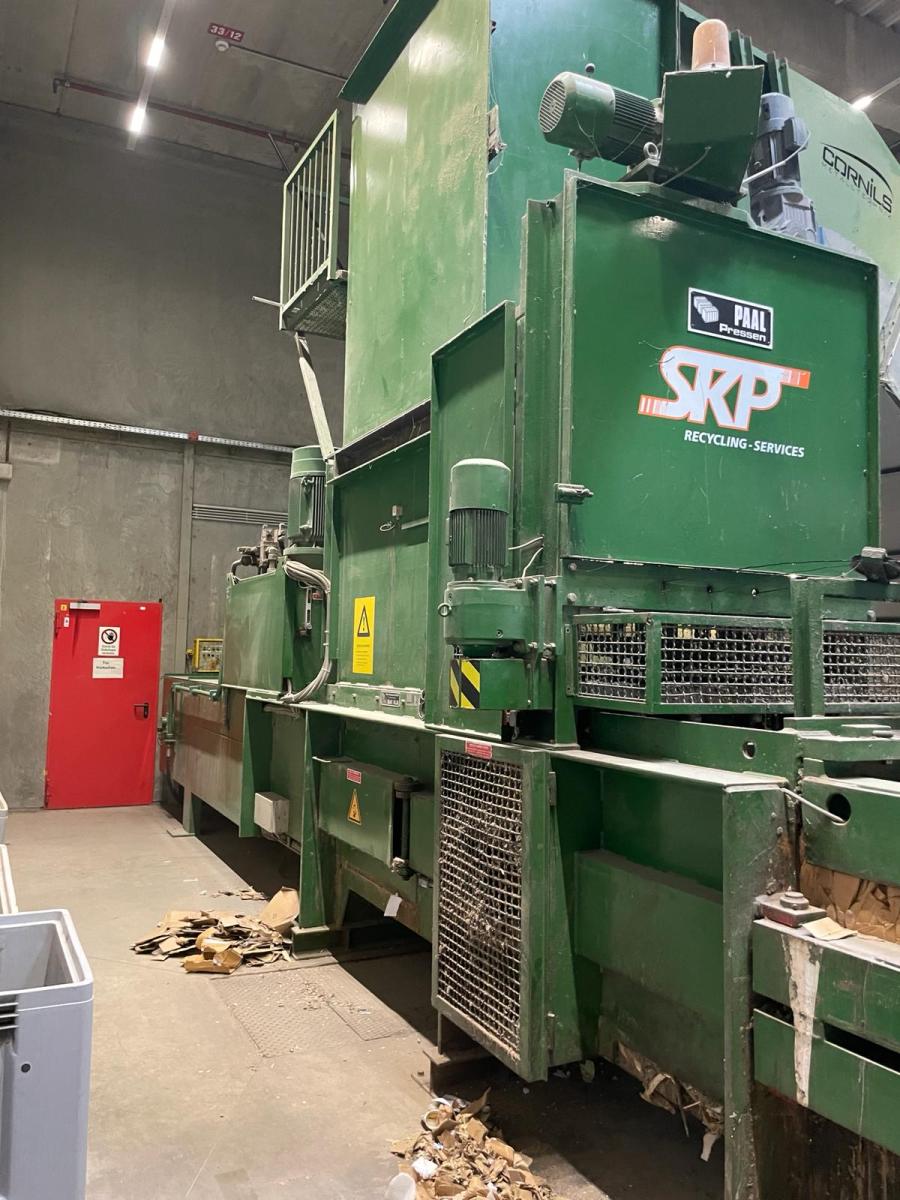

Paal_Konti_200DS0
Technical parameters

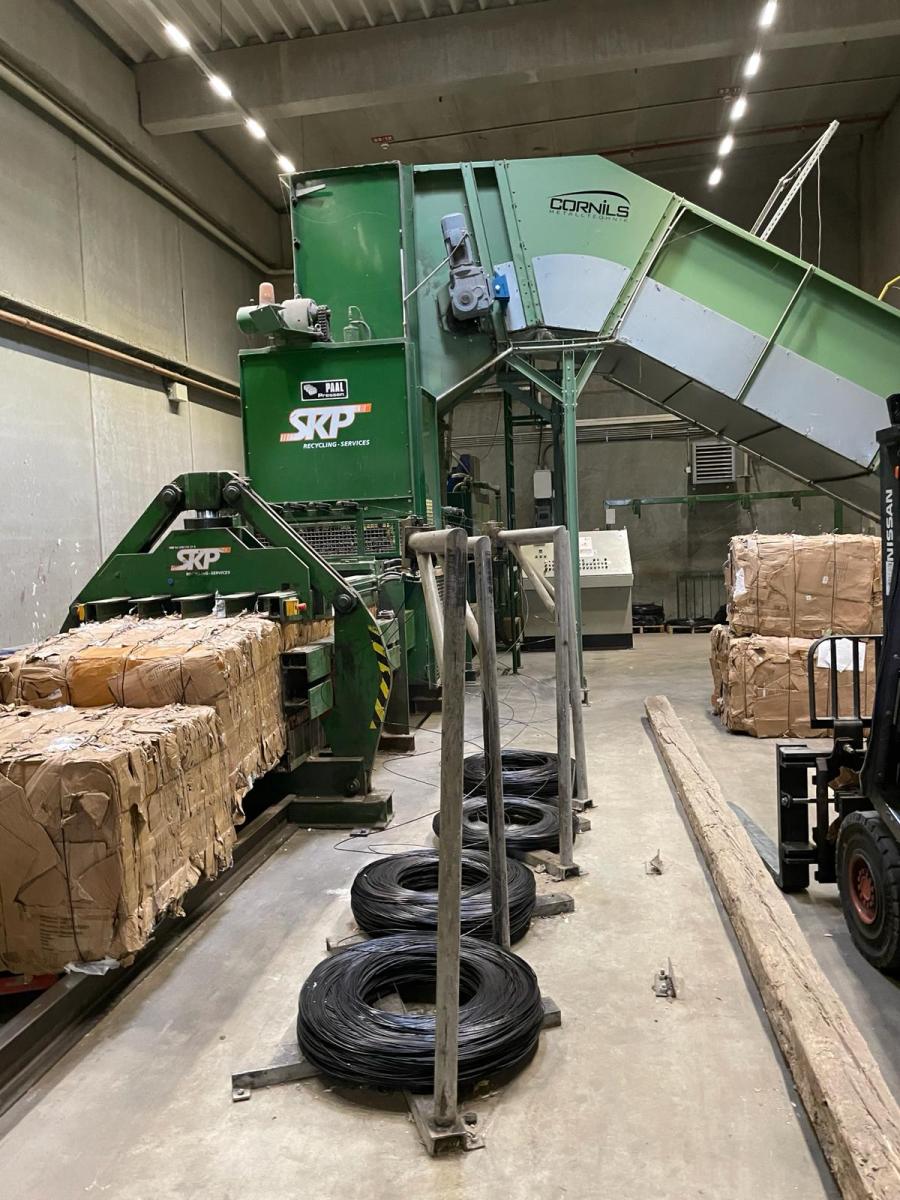

Baler 48 200 EUR
Conveyor 24 100 EUR
Technical parameters:
Press force: 50 tonnes

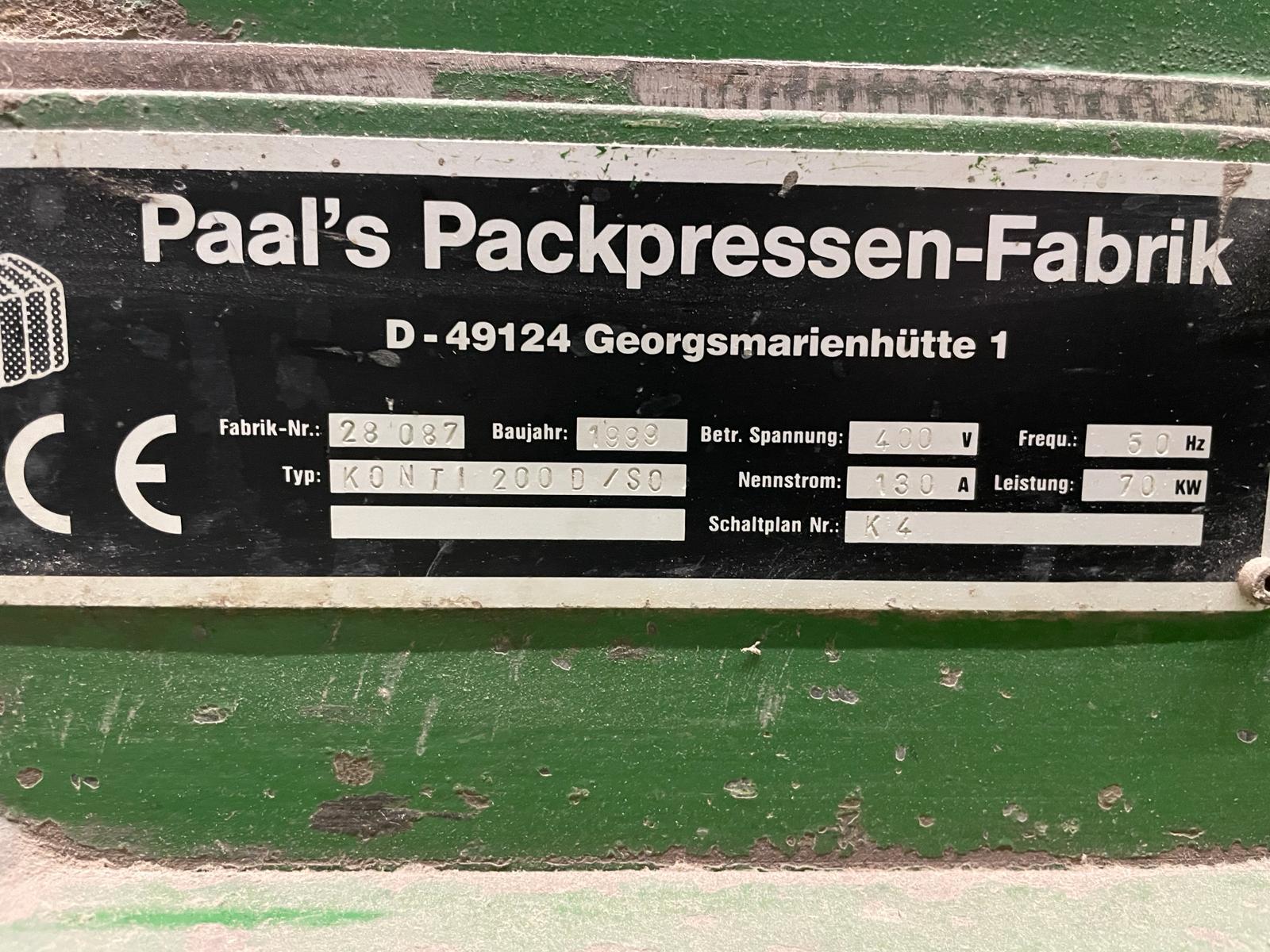

Year of manufacture: 1999
Unit pressure: 6.06 kg/cm²
Number of ties: 4 vertically
Channel cross-section: 750 x 1100 mm
Loading opening: 1020 x 1400 mm

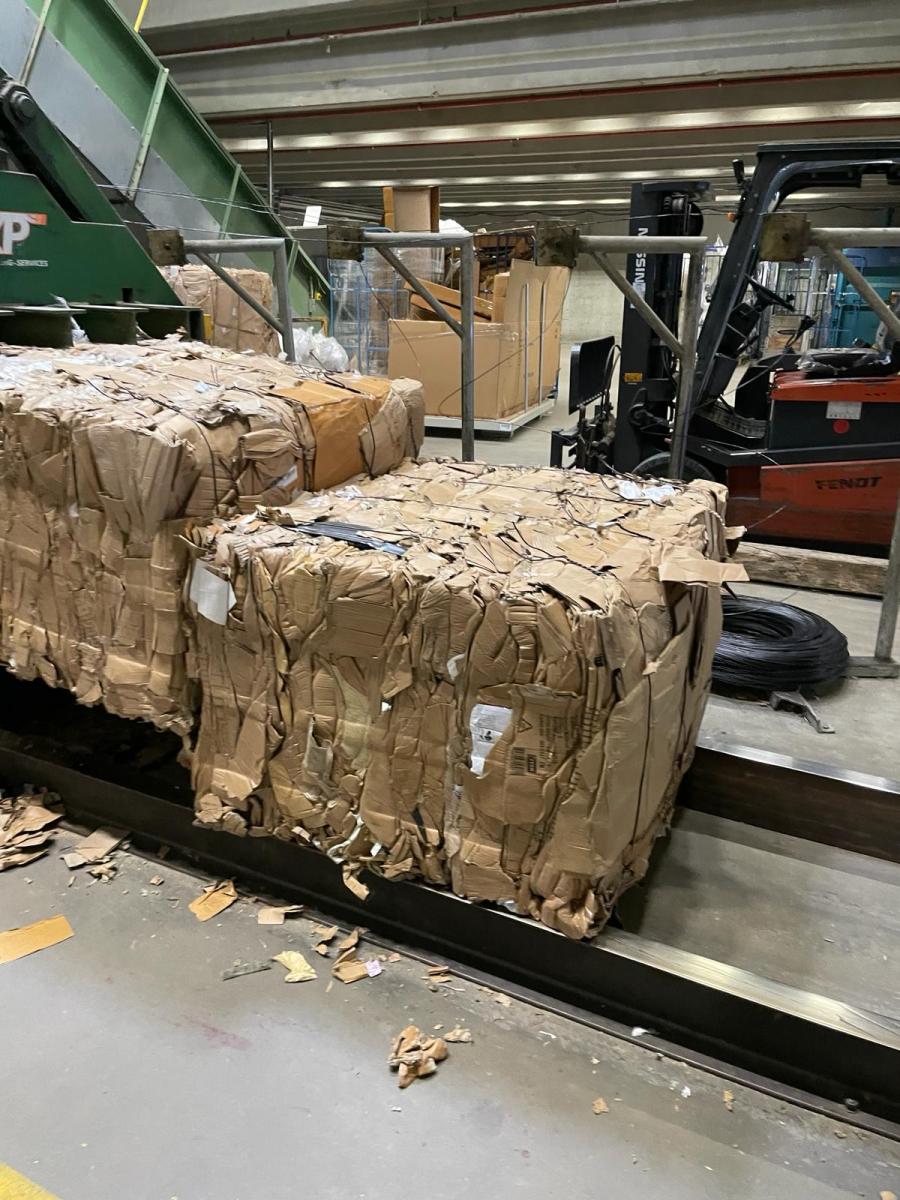

Bale weight: 425-550 kg
Machine weight: approx. 17 tonnes
Power supply: 400 V/ 62 kW

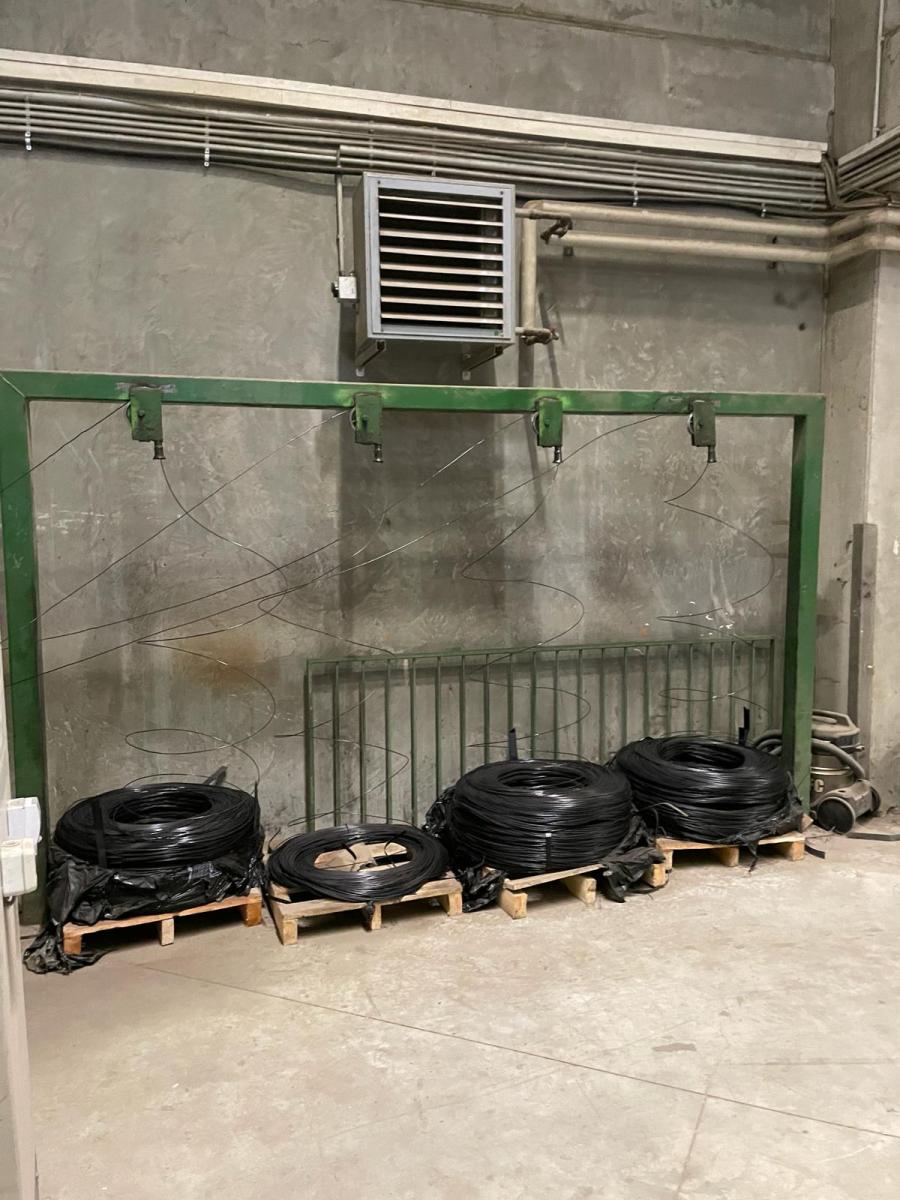

Binding: automatic wire
Notes:

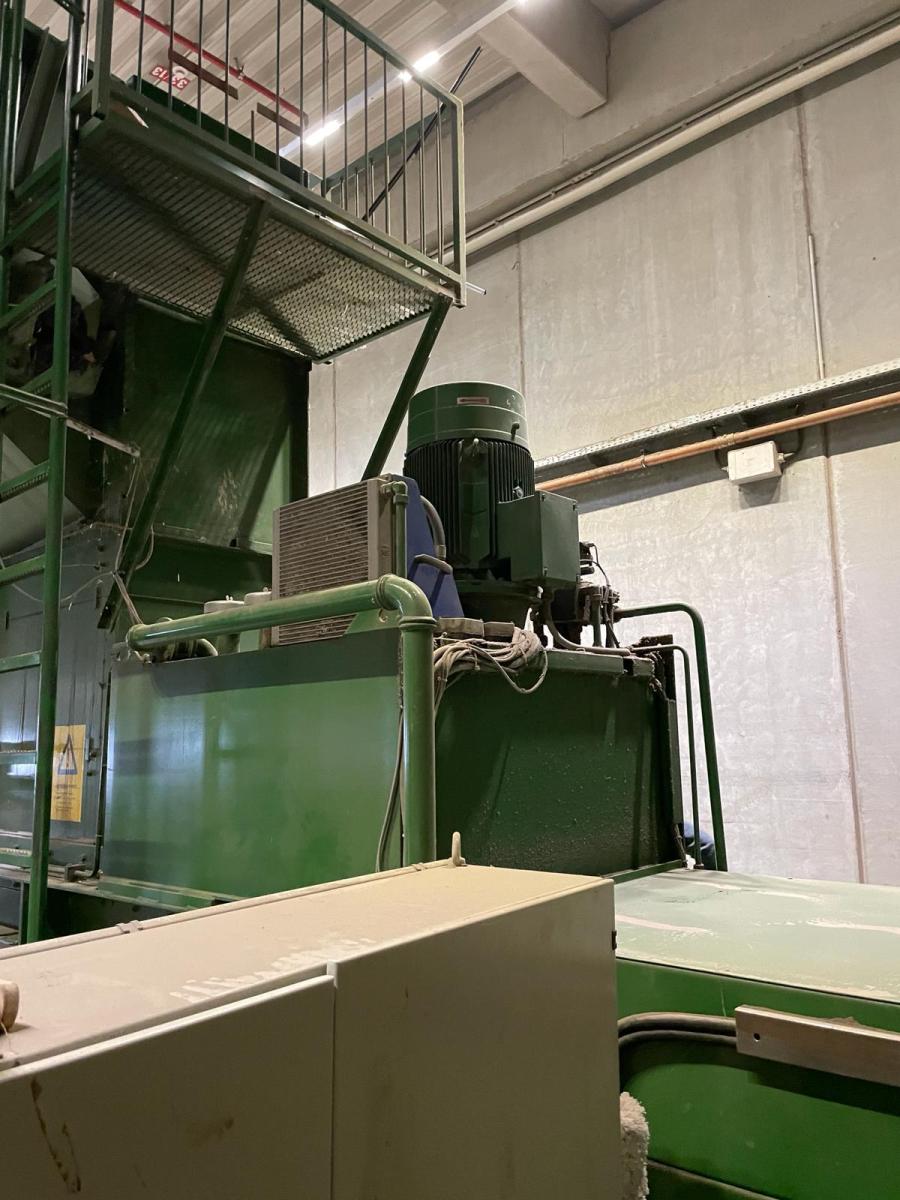

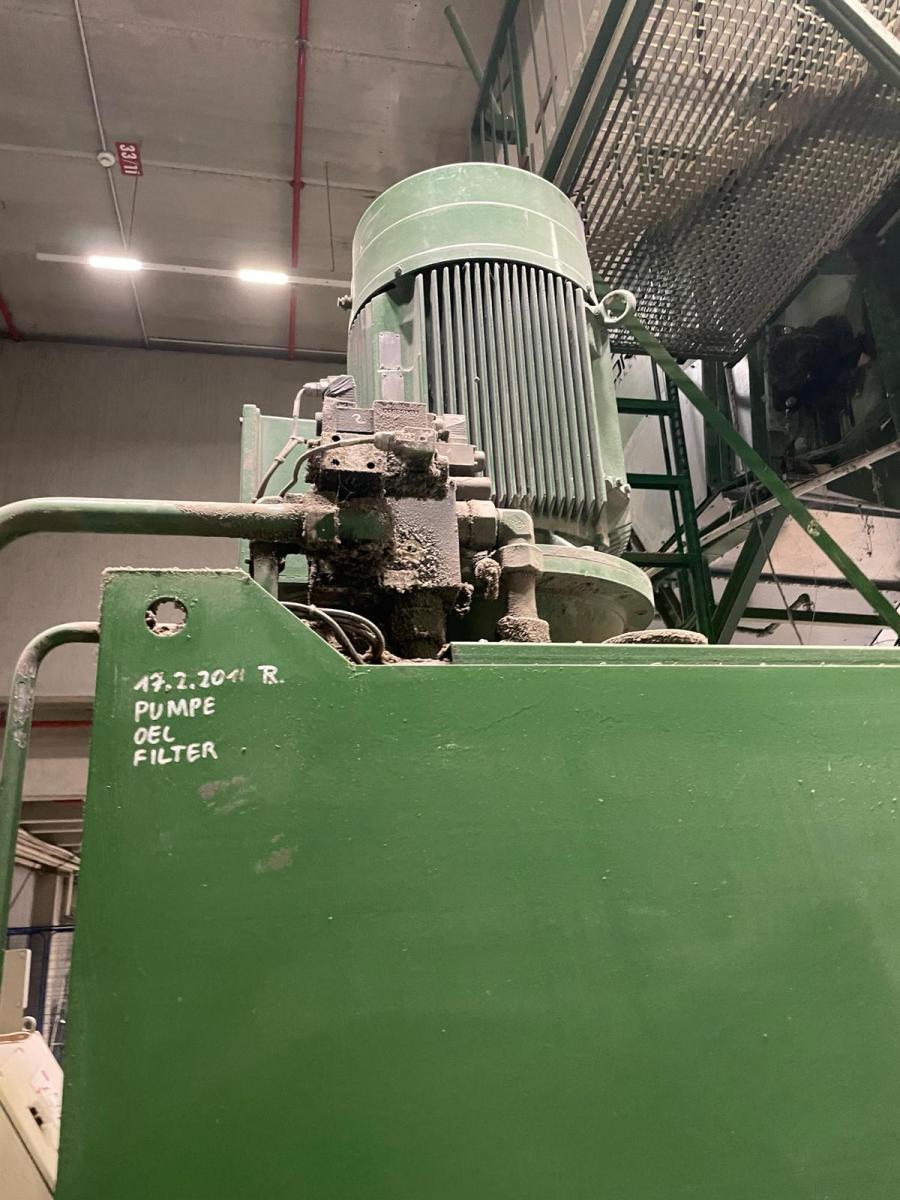

Main motor 45 kW
rotor 11kW
pins 3kW
tying 1.5kW
cooler 1.5kW
Max. filling volume: 1.3 m³
Throughput at idle: max 425 m³/hour
Capacity under load: max 240 m³/hour
Theoretical throughput:
5 tonnes/hour (for a raw material weight of 20 kg/m³)
9 tonnes/hour (for a raw material weight of 35kg/m³)
15 tonnes/hour (for 60kg/m³ material)
20 tonnes/hour (for 100kg/m³ material)
