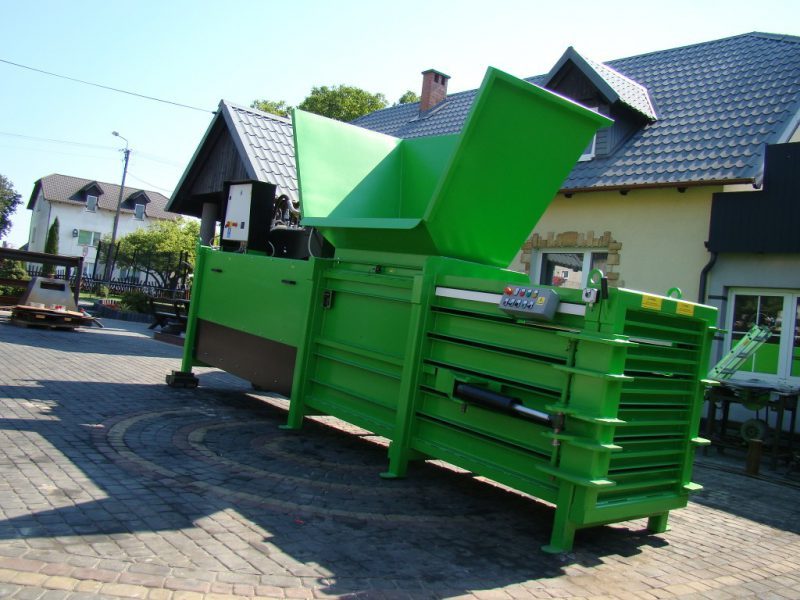

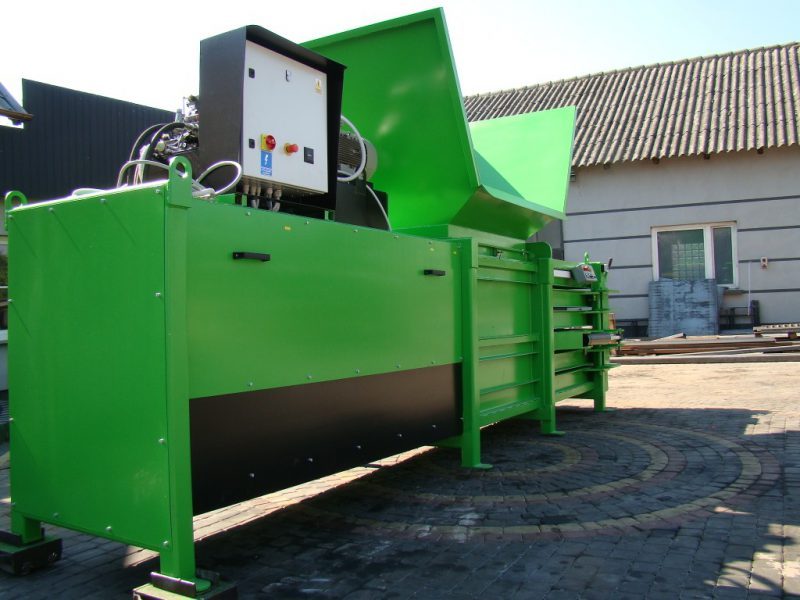

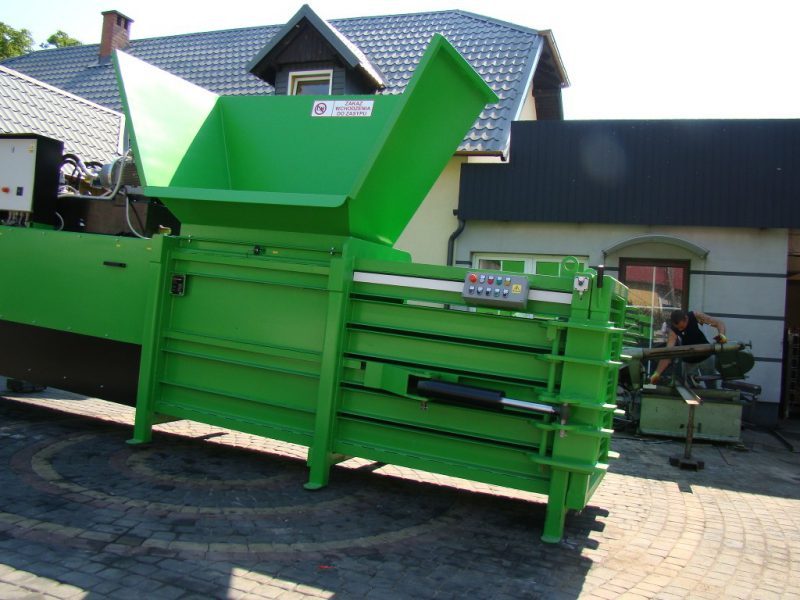

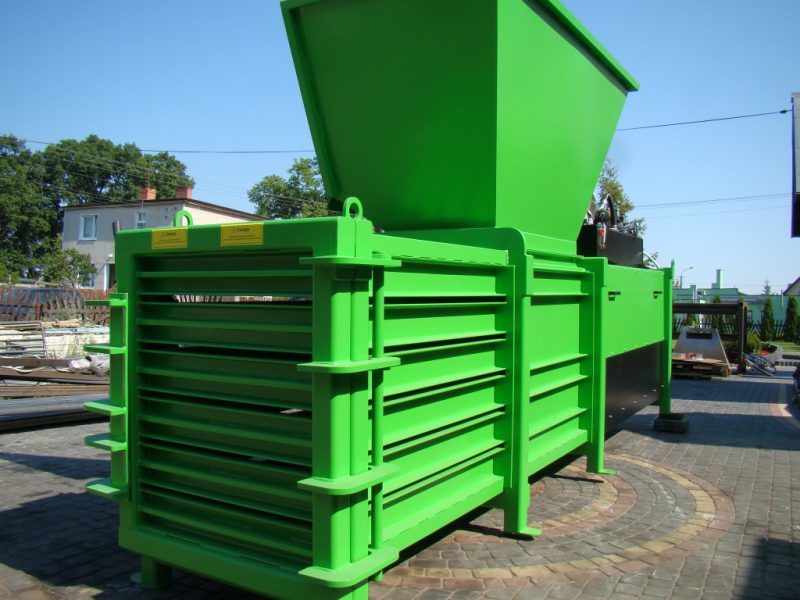

Bartontech Horizontal Baler 600 Plus: Enhanced Efficiency and Throughput
The Bartontech Horizontal Baler 600 Plus is the perfect solution for growing recycling centers, mid-to-large logistics hubs, and manufacturing facilities that need more power than a standard press can offer. Upgraded for superior performance, the 600 Plus model boasts increased pressing force and optimized cycle times, allowing you to process high volumes of cardboard, plastics, and paper with remarkable speed and reliability.
Key Features of the 600 Plus Model:
- Accelerated Cycle Times: The “Plus” enhancements mean faster operation, eliminating bottlenecks in your waste processing line and increasing your daily throughput.
- Exceptional Bale Density: Compress bulky waste materials into highly dense, mill-size bales that perfectly optimize transport space, significantly reducing your logistics and shipping costs.
- Automation-Ready Design: Engineered to seamlessly integrate with automated continuous feeding systems, such as conveyors and bin tippers, minimizing the need for manual handling.
- Industrial Durability: Constructed from heavy-duty, wear-resistant materials with a reinforced chamber to withstand the rigors of continuous, demanding industrial use.

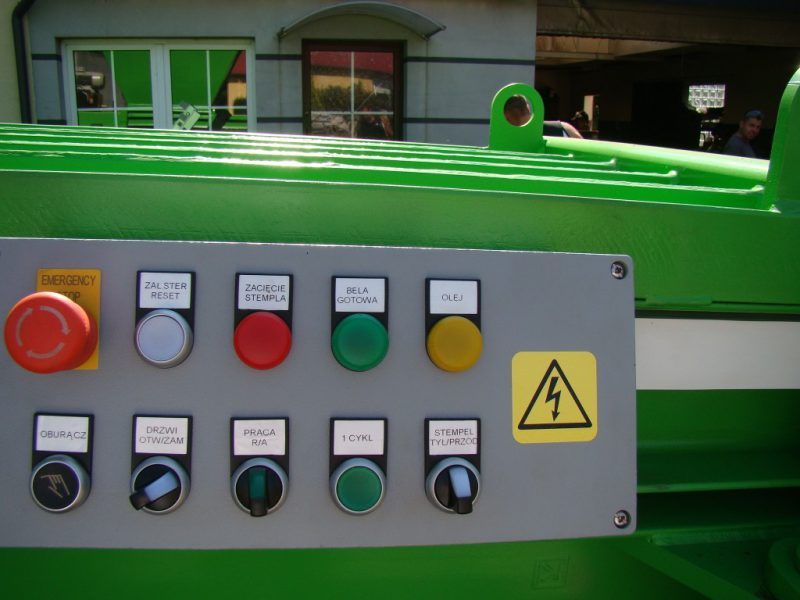

- User-Friendly Operation: Equipped with an advanced, intuitive control panel that simplifies machine operation, monitoring, and routine maintenance for your staff.
Step up your waste management capabilities with the powerful and efficient Horizontal Baler 600 Plus. Are you ready to optimize your recycling line? Contact our technical sales team today for a customized quote, detailed footprint dimensions, and integration options!
Technical parameters:
| Dimensions/ size of the baler (height x width x depth) | 2725 mm x 1435 mm x 5735 mm |
| Weight of the baler | 6000 kg |
| Inlet size (height x width) | 1370 mm x 720 mm |
| Bale dimensions (height x width x depth) | 1100 mm x 760 mm x 1200-1500 mm |
| Weight of a bale | 200-500 kg |
| Bale wiring | wire, tape or string |
| Number of wires | 5 |
| Binding direction | horizontal |
| Capacity | 3 1,5 T/h at bulk weight 70 kg/m |

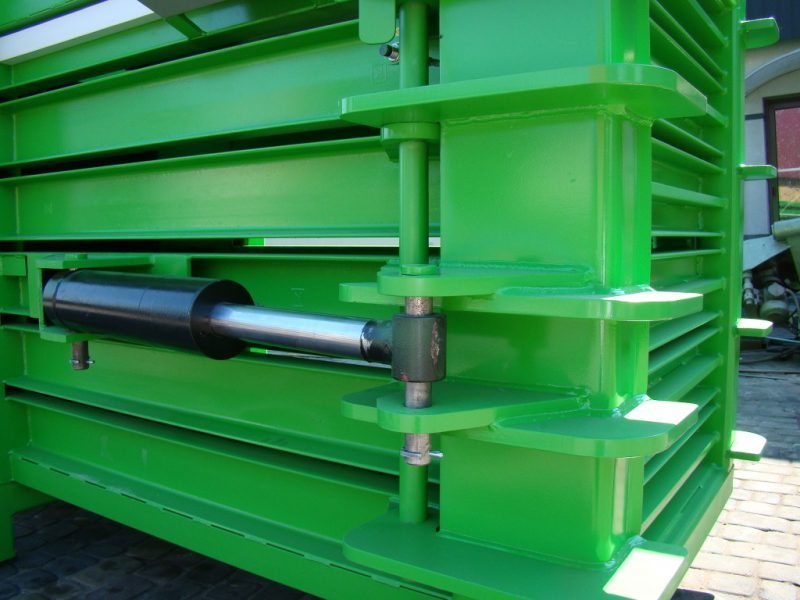

| Number of actuators | 2 |
| Crushing force | 25 – 50 tons MAX |
| Standard time of crushing cycle | 15 kW / 60 sec., 22 kW / 47 sec. |
| Electric current | 35 A (15 kW motor) |
| Electric voltage | 400 V |
| Length of power supply cable | 6 m |
| Inner electrical circle | 24 V DC |
