Semi-automatic baler, horizontal press with press flaps model 800 Cross is dedicated to foam, tyres and other recyclable materials. Excellent baler in tyre recycling process – pyrolysis. The machine is also able to bale waste like paper, cardboard etc.

The main feature of 800 Cross baler is the possibility of ejecting a single bale due to the use of elongated actuator..



Technical parameters:



  • dimensions / size of the baler (height x width x depth)

2805 mm x 1750 mm x 8350 mm

  • weight of the baler

9500 kg

  • inlet size (height x width)

1900 mm x 970 mm

  • bale dimensions

1100 mm x 1100 mm x 1200 – 1500 mm

  • weight of a bale

400 kg – 1300 kg

  • bale wiring

wire, tape or string

  • number of wires

5

  • binding direction

horizontal

  • capacity

2 T/h at bulk weight 70 kg/m

  • number of actuators

2

  • crushing force

75 tons max

  • standard time of crushing cycle

15 kW / 75 sec.

  • electric current

35 A (15 kW motor)

  • electric voltage

400V

  • lenght of power supply cable

6 m

  • inner electrical circle

24 V DC

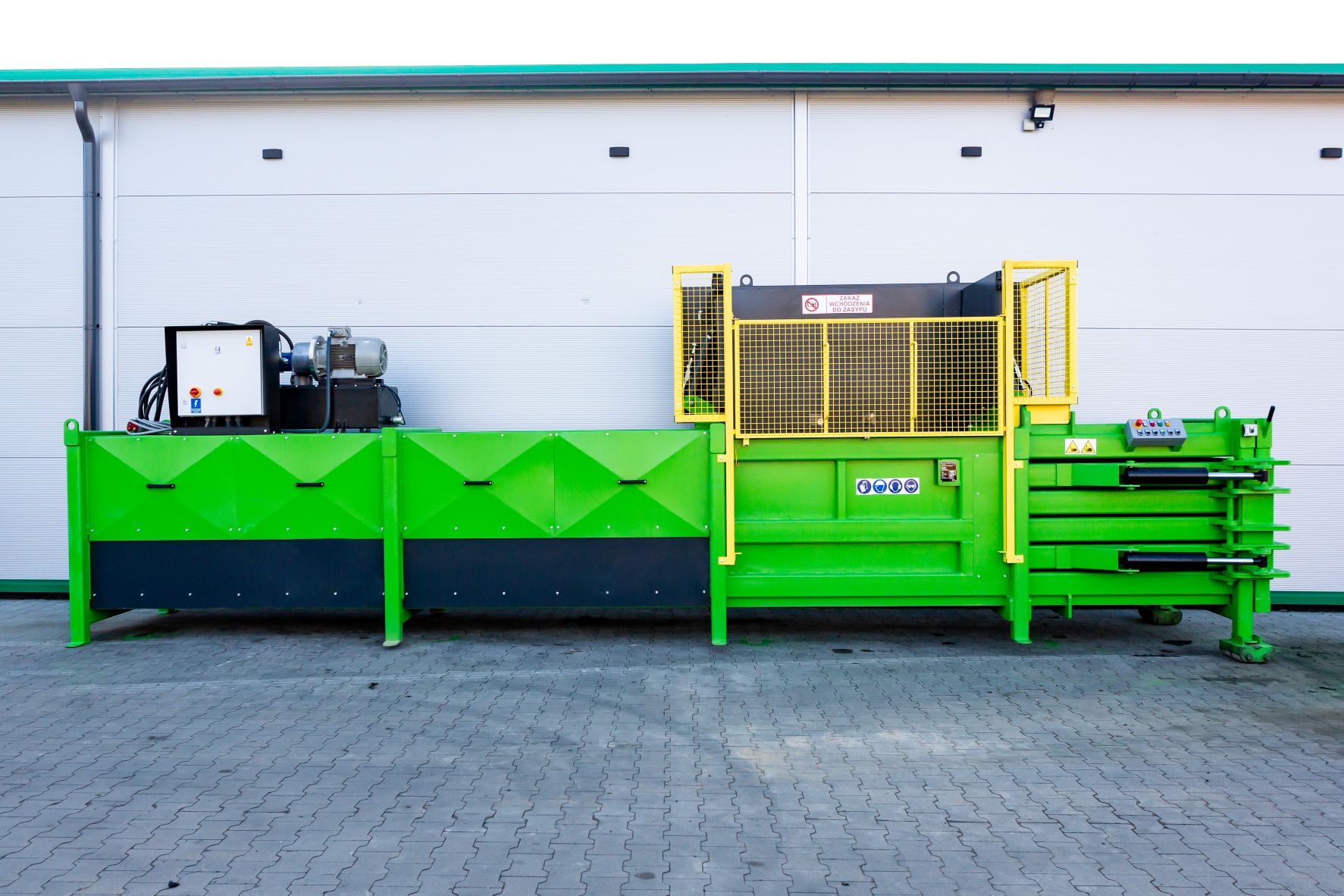

800_cross_1

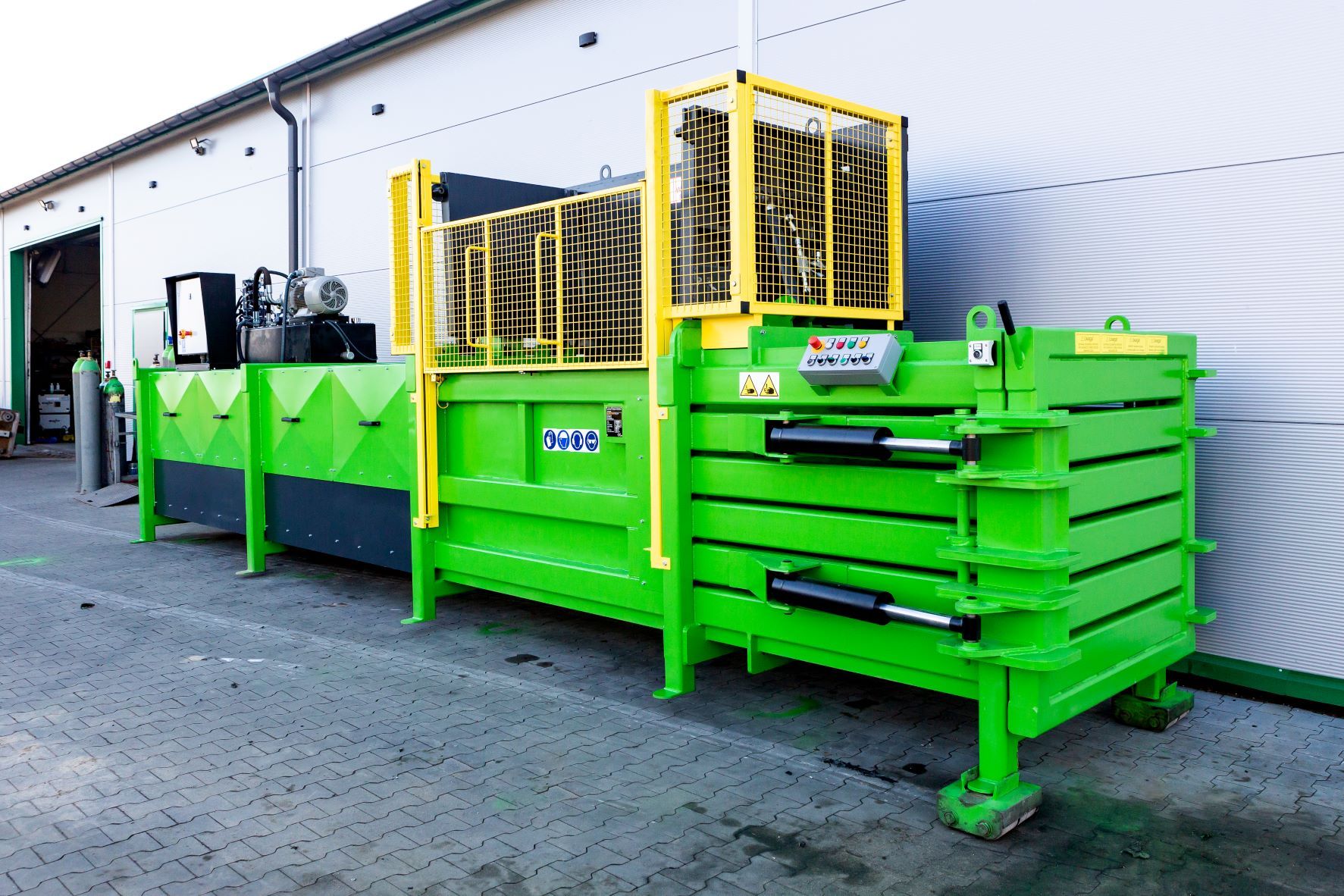

800_cross_2

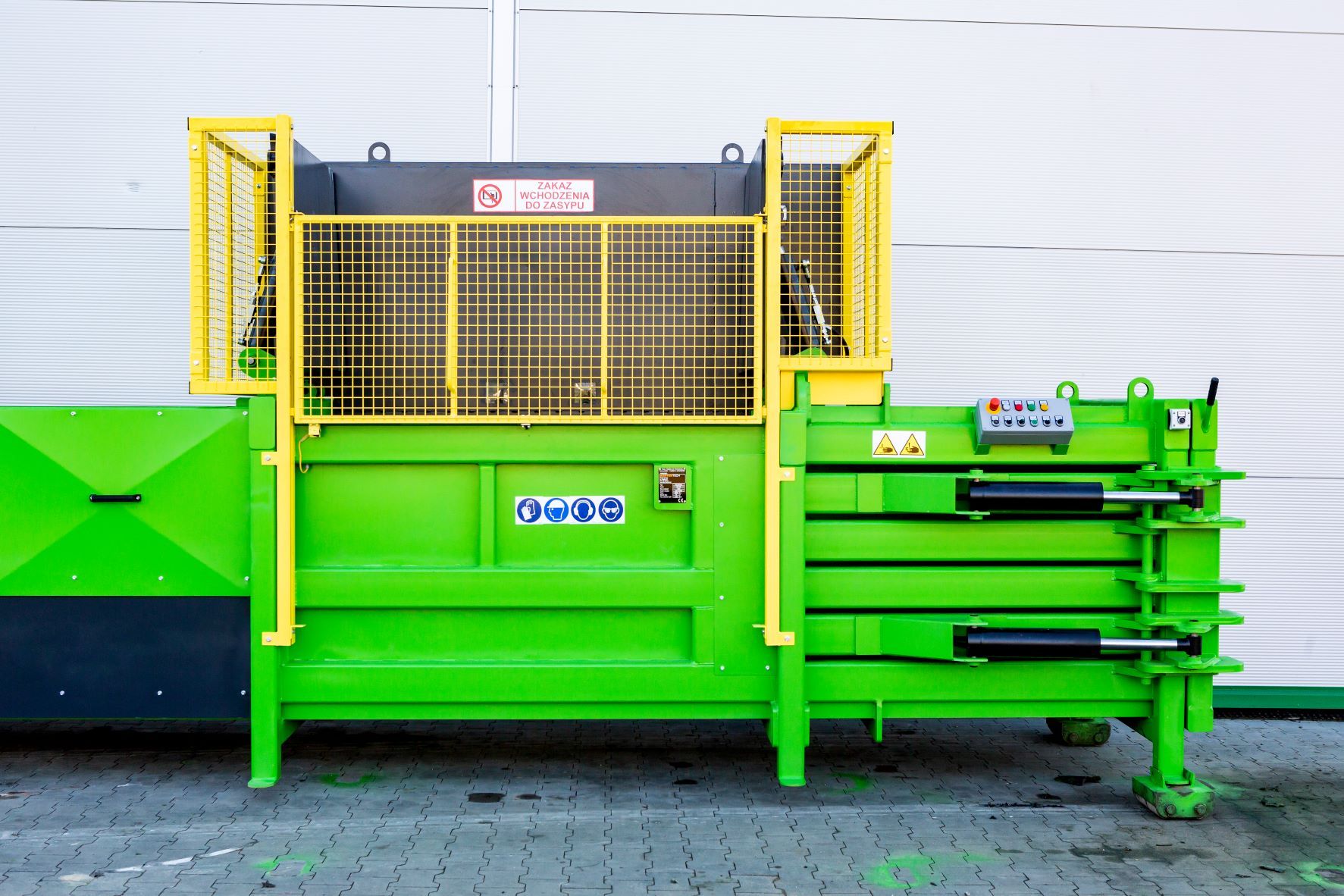

800_cross_3

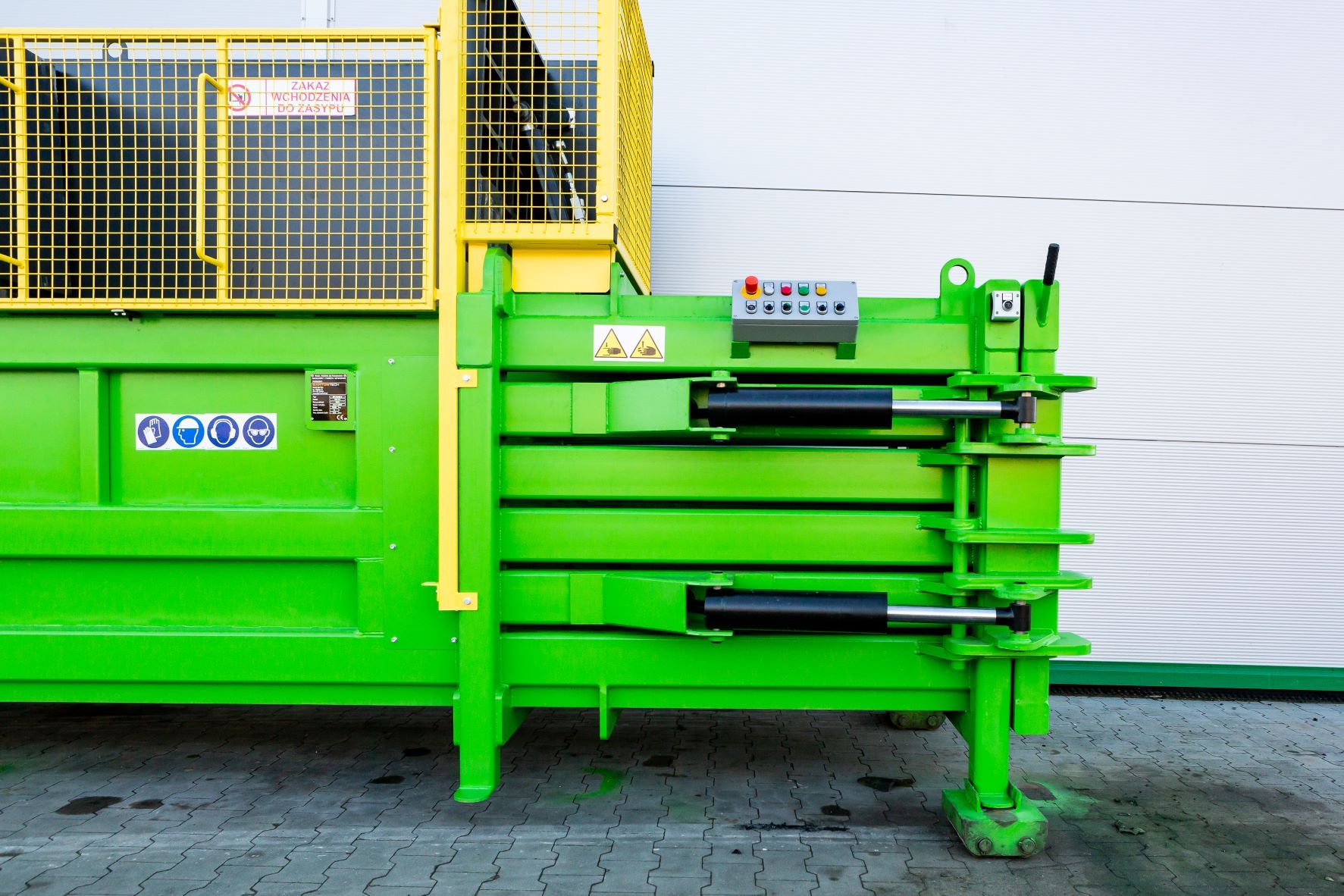

800_cross_4

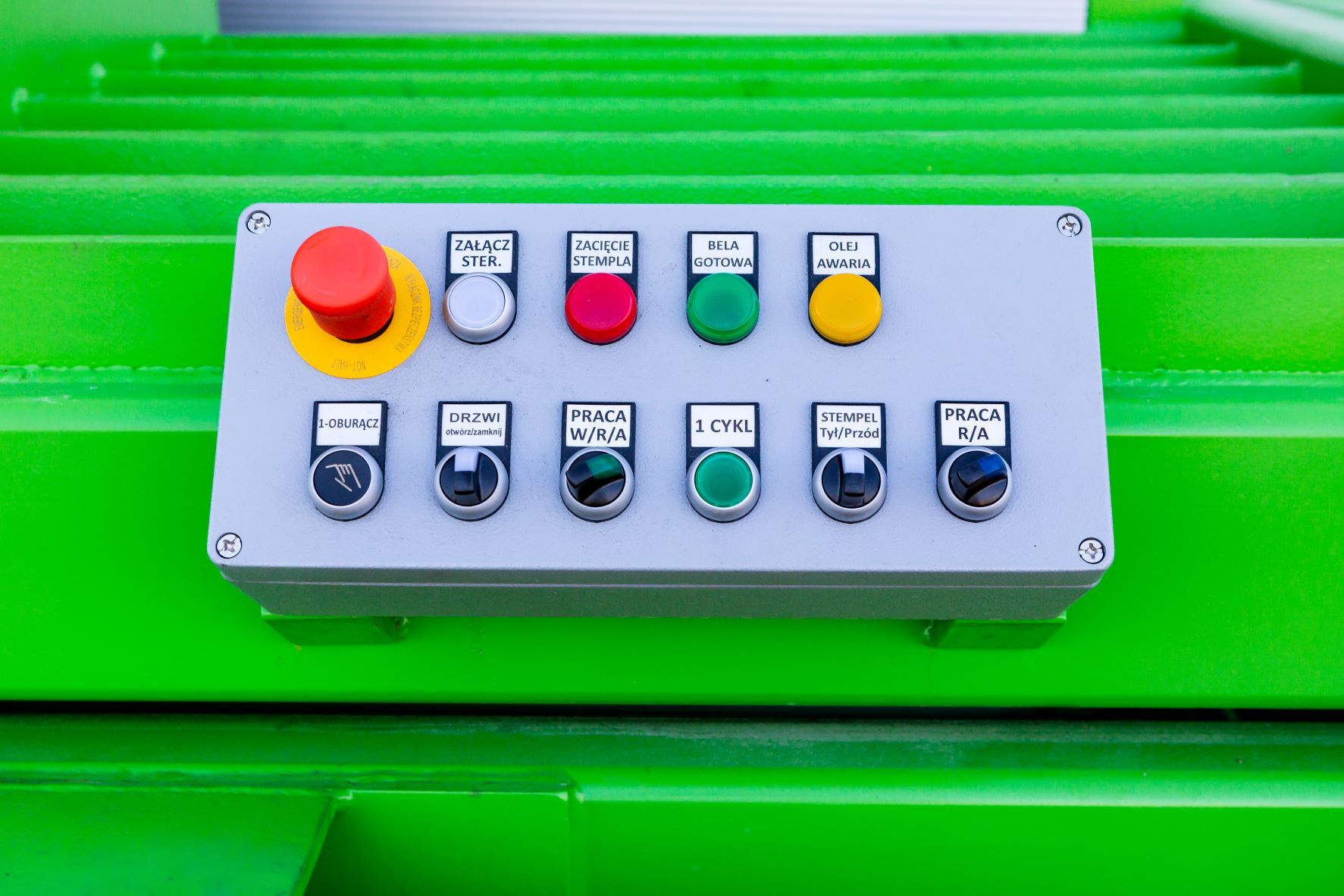

800_cross_6

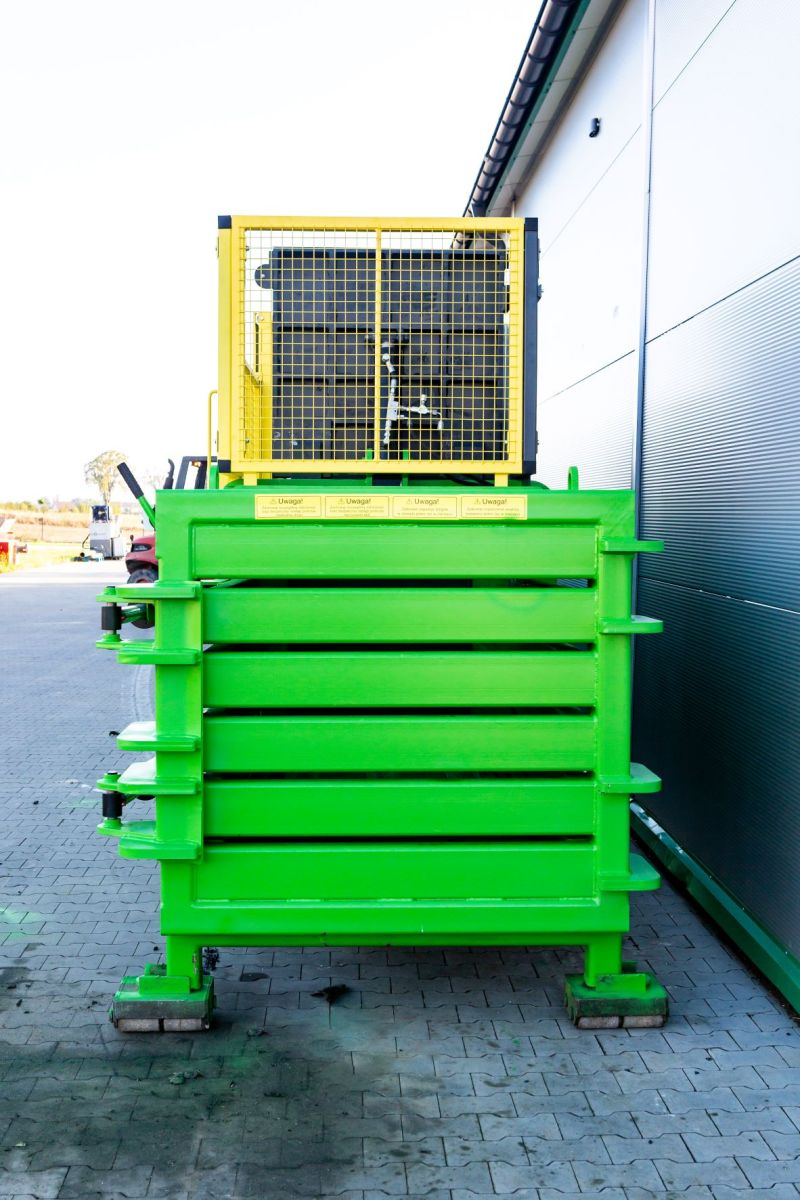

800_cross_7
