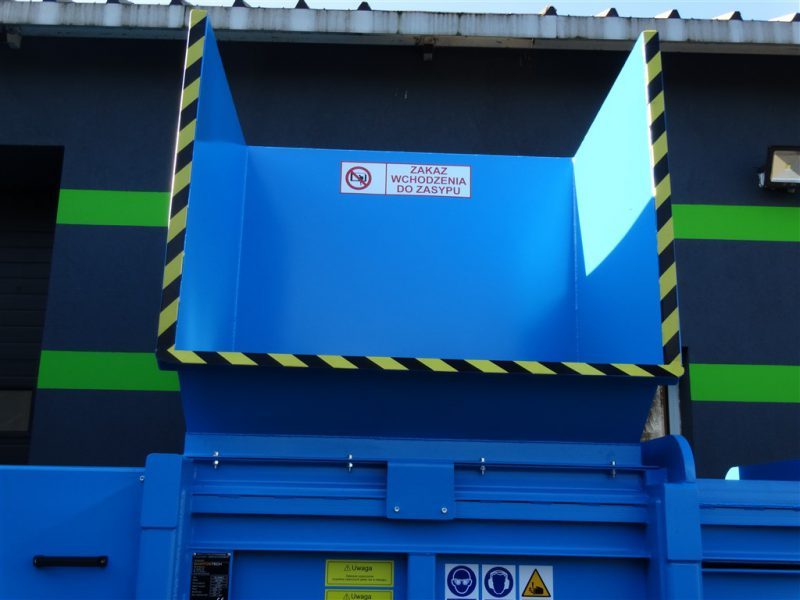

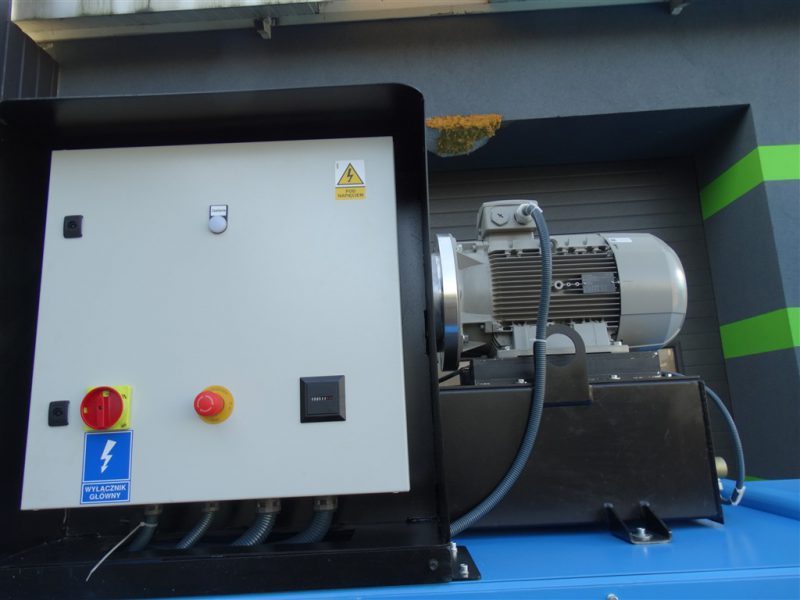

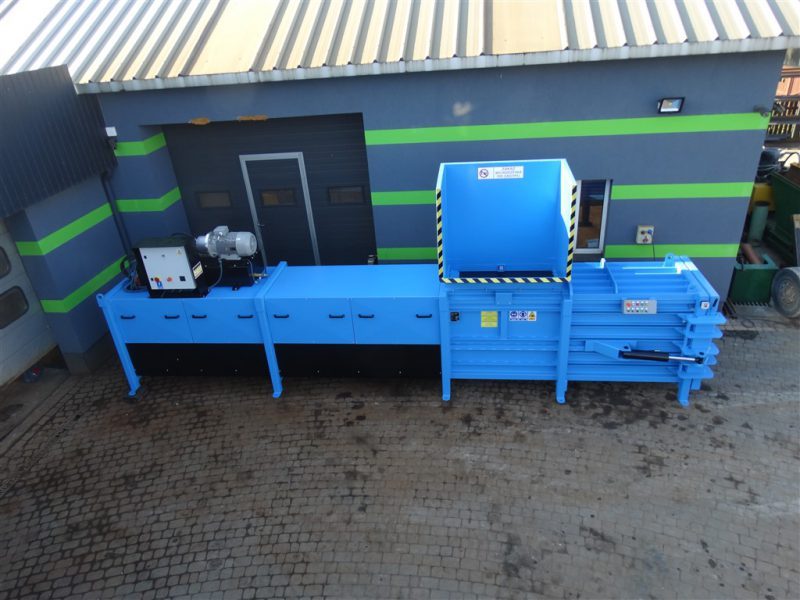

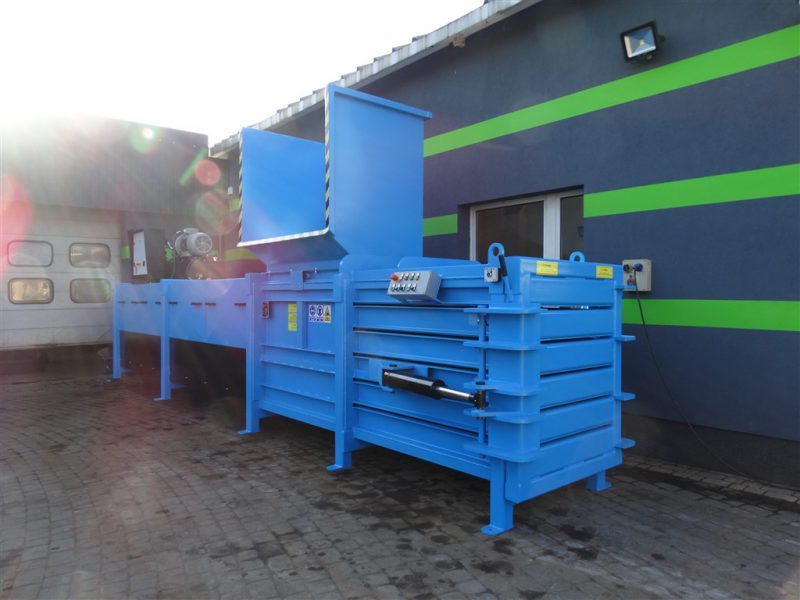

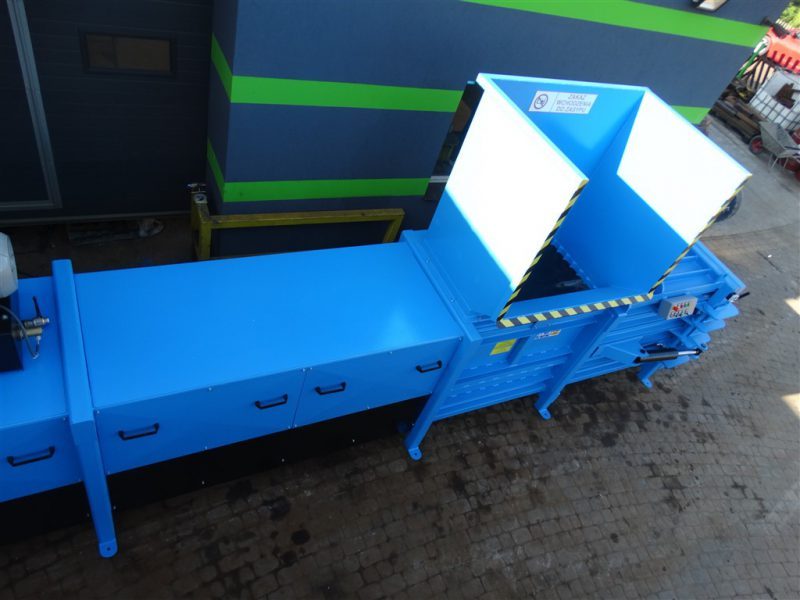

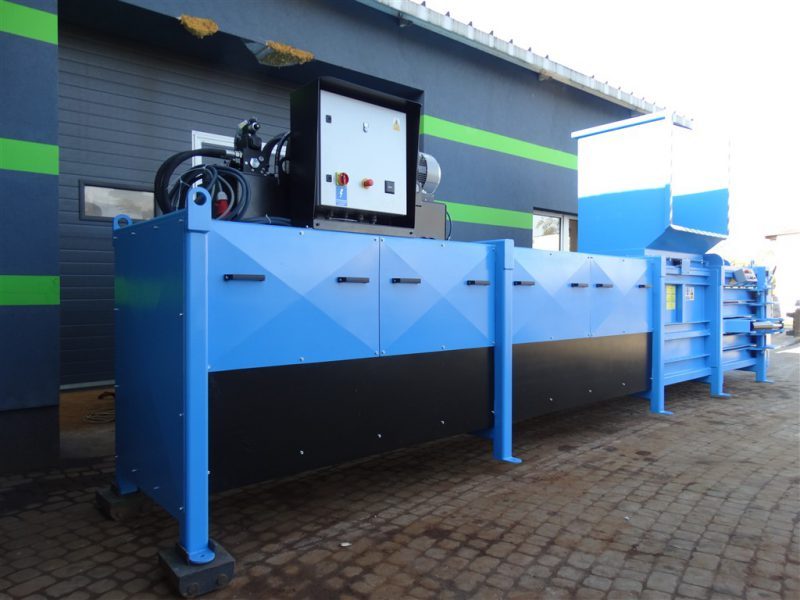

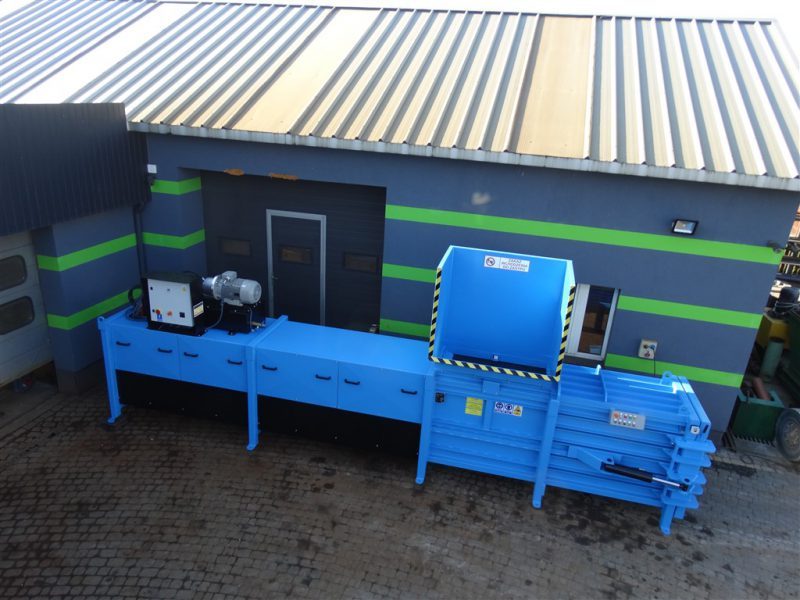

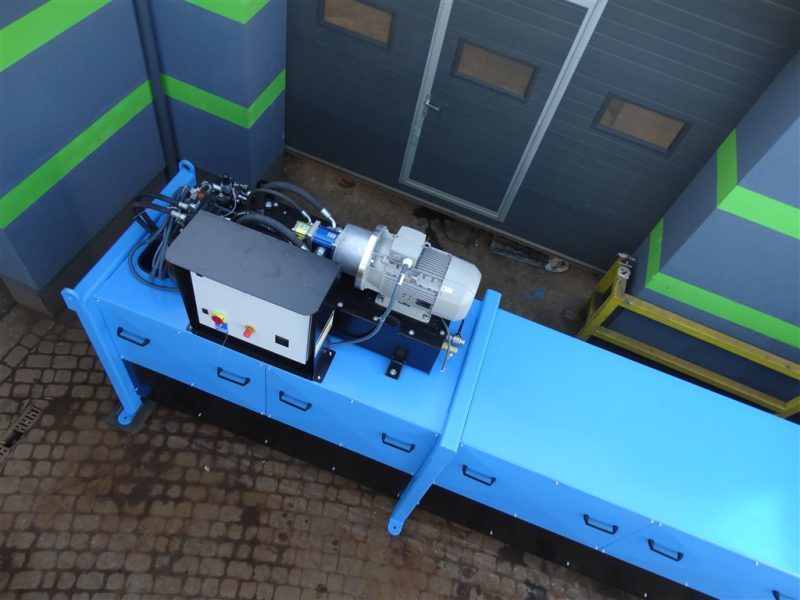

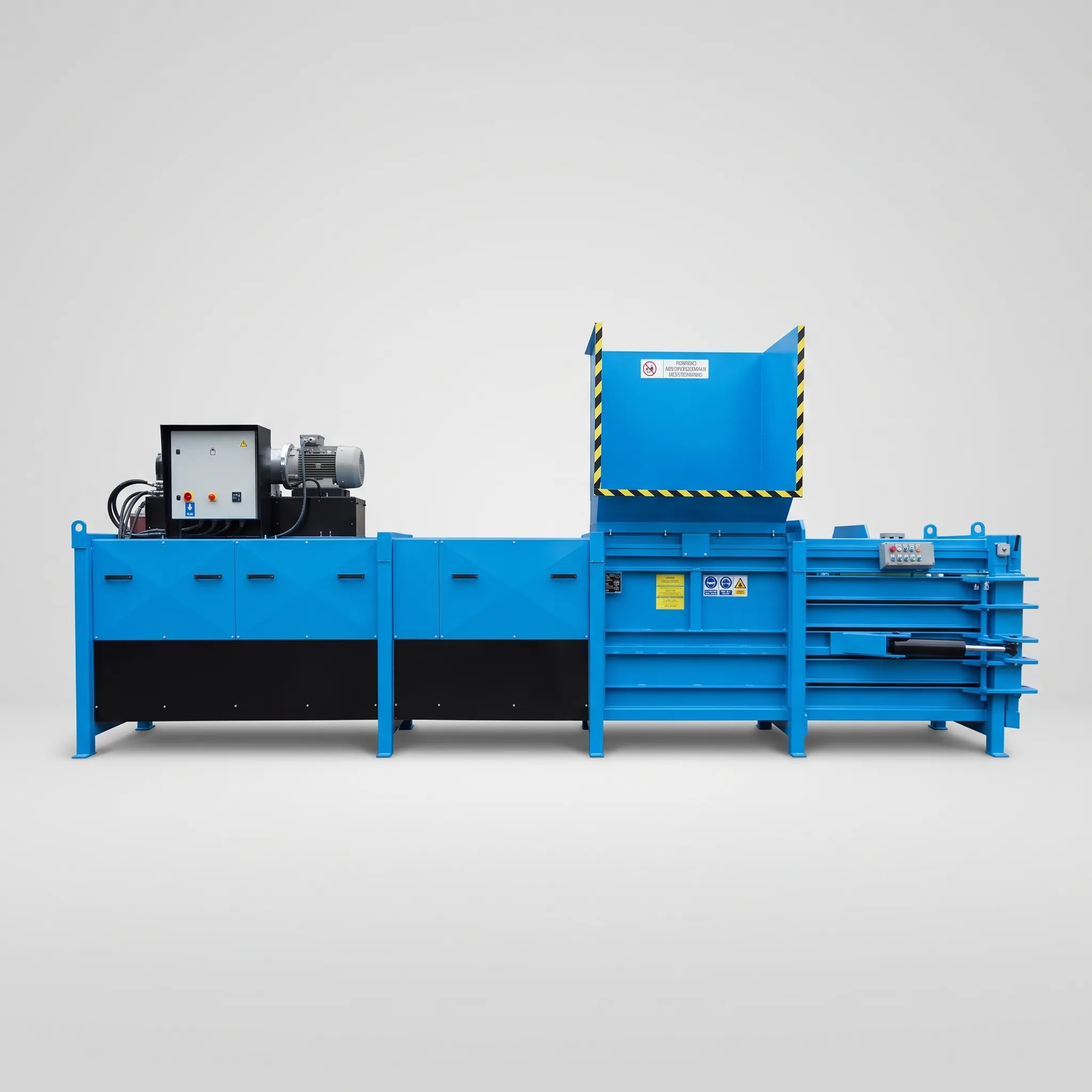

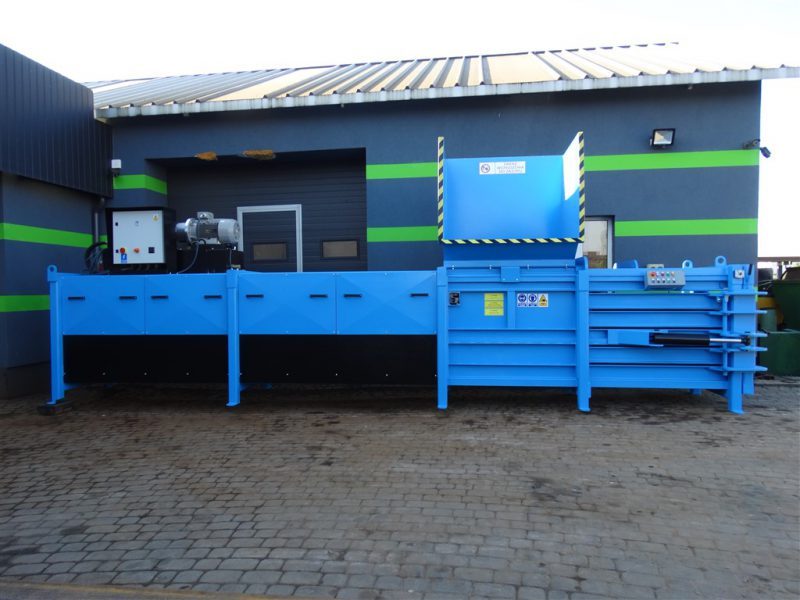

Semi-automatic baler, horizontal press 600 MAX provides a throughput of 1,5 tons per hours which makes it perfect for waste processing plants. The machine has a crushing force of 50 tons, the knife cutting off the excessive material in the charging chamber, the floor made of wear-resistant steel, a bale full indicator and a three-phase motor with the power of 15 kW. Optionally, the baler may be equipped with additional devices, e.g.: a tippler for 1000 L containers, co-operating conveyor belt, extra security devices, etc. Horizontal binding system makes it perfect for baling plastic PET bottles and aluminum cans. The whole process of baling, apart from binding, takes place in an automatic cycle. The main feature of 600 MAX baler is the possibility of ejecting a single bale due to the use of elongated actuator.
Technical parameters:
| dimensions/ size of the baler (height x width x depth) | 2725 mm x 1435 mm x 7715 mm |
| weight of the baler | 7000 kg |
| inlet size (height x width) | 1370 mm x 720 mm |
| bale dimensions (height x width x depth) | 1100 mm x 760 mm x 1510 mm |
| weight of a bale | 200 – 500 kg |
| bale wiring | wire, tape or string |
| number of wires | 5 |
| binding direction | horizontal |
| capacity | 3 1,5 T/h at bulk weight 70 kg/m |
| number of actuators | 1 |
| crushing force | 50 tons MAX |
| standard time of crushing cycle | 15 kW / 60 sec., 22 kW / 47 sec. |
| electric current | 35 A (15 kW motor) |
| electric voltage | 400 V |
| lenght of power supply cable | 6 m |
| inner electrical circle | 24 V DC |
