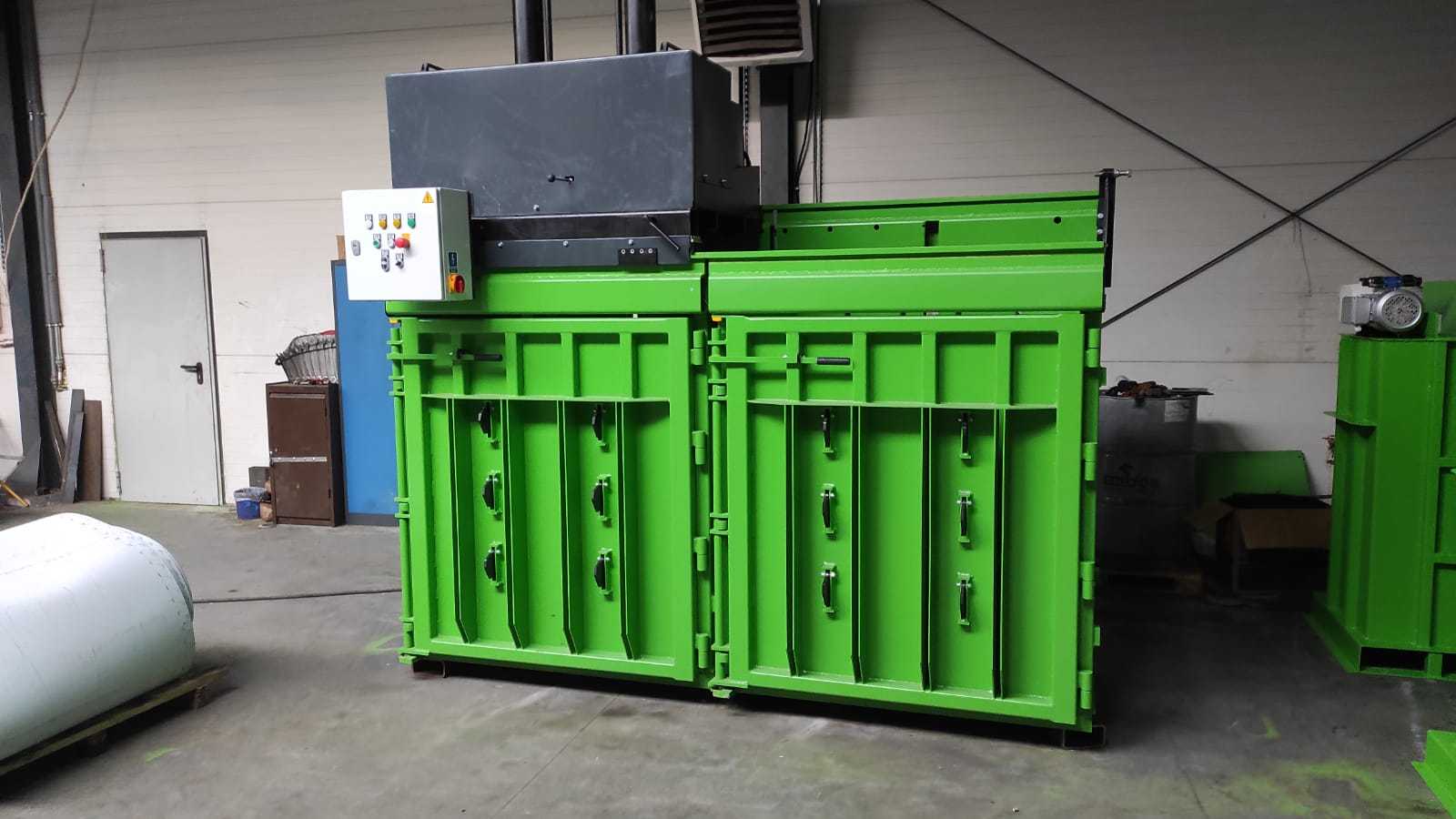

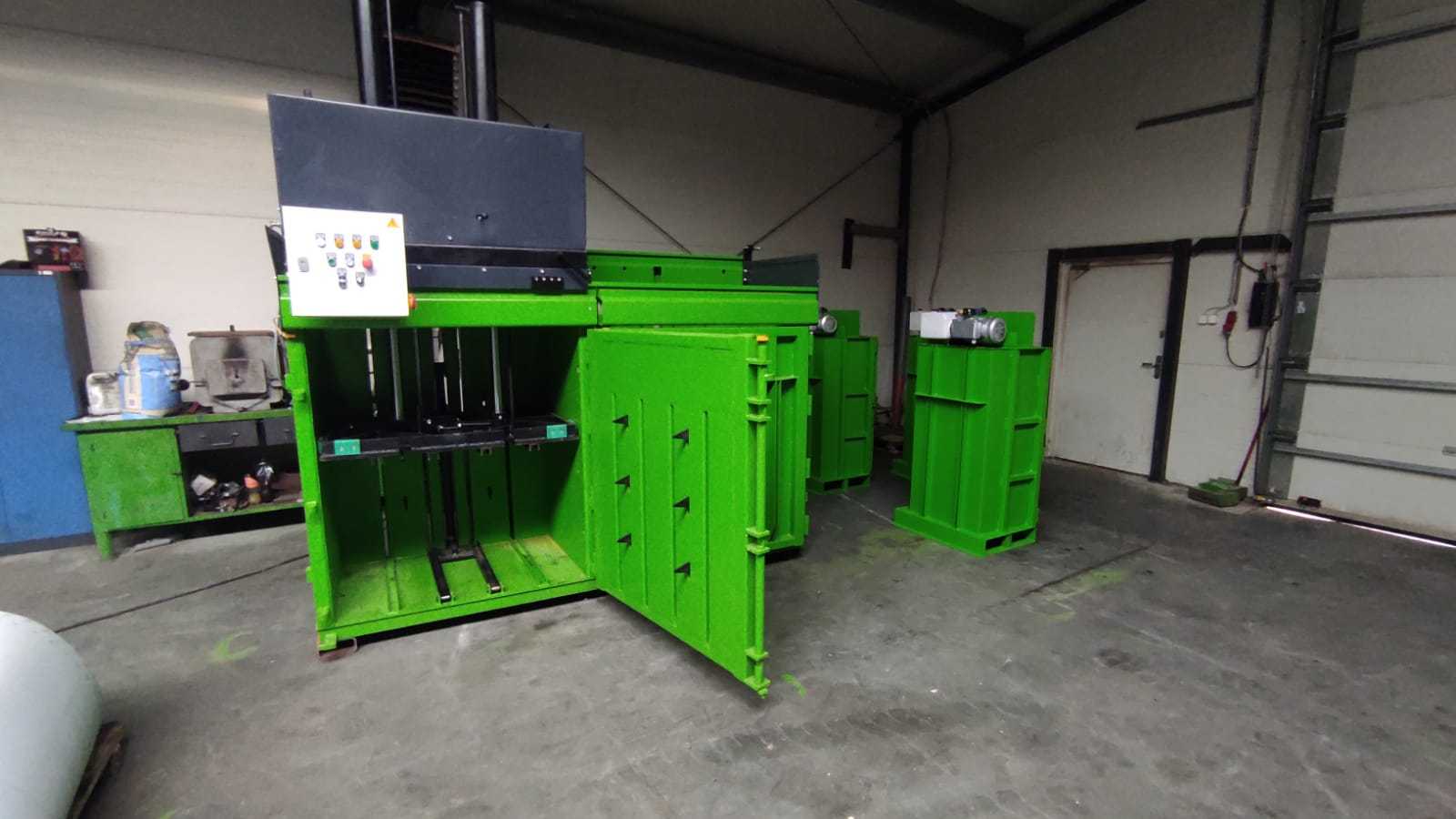

Bartontech 300 double chamber press

• unit height:

2950 mm

• machine weight:

2530 kg

• hopper width:

800 mm

• height of hopper opening:

1200 mm

• motor power:

5.5 kW

• power supply:

3 x 400 V/50 Hz

• circuit breakers:

25 A, delayed

• cable connector:

CEE 5 x 32 A/6H

• unit depth:

1420 mm

• compartment length:

1180 mm

• chamber width:

800 mm

• bale dimensions:

1200 x 800 x 800 mm

• bale binding:

Manual

• bale ejection:

Semi-automatic

• bale weight:

250 – 450 kg

• working cycle time:

50 s

• pressure force of hydraulic cylinders:

250 kN (25 t)

• machine length:

2715 mm

• width of machine:

1405 mm
