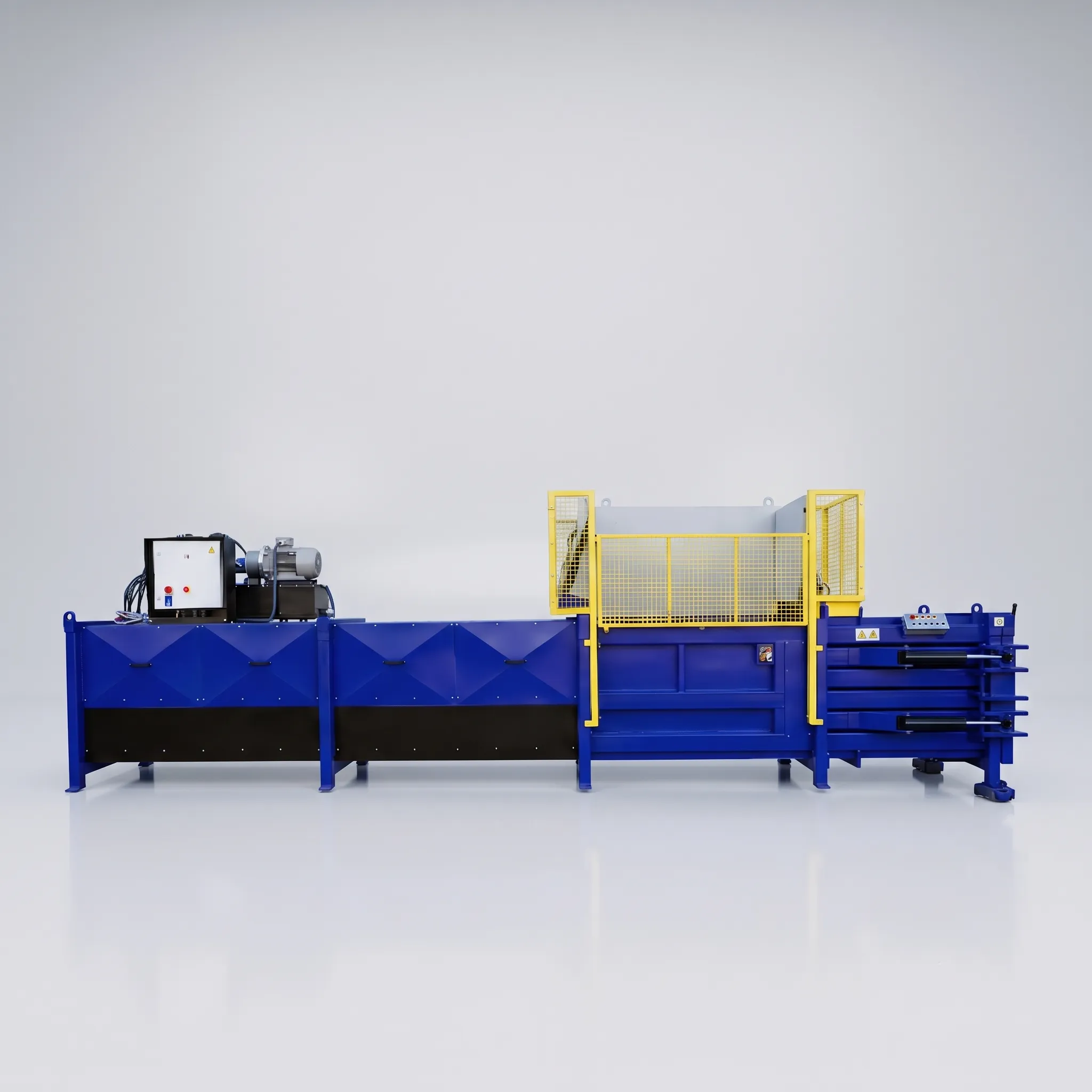

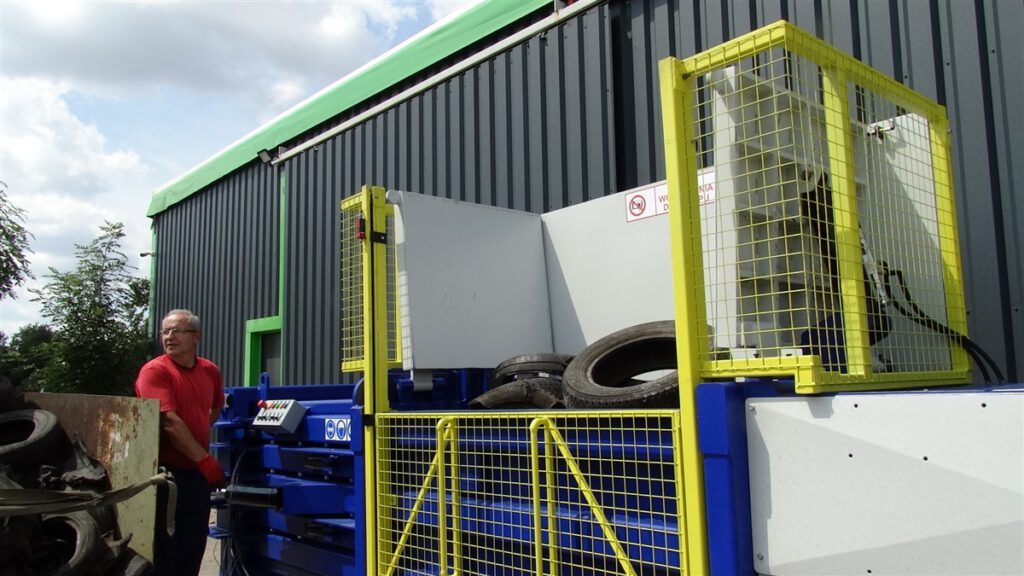

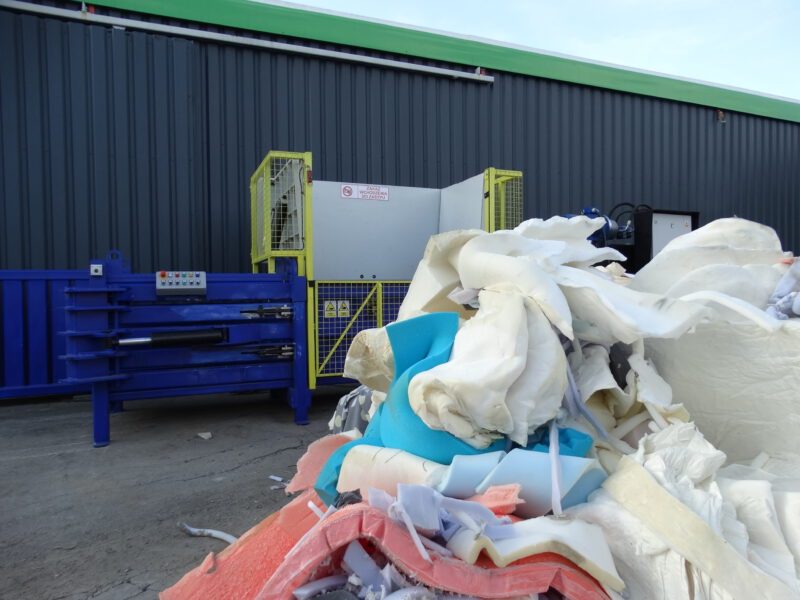

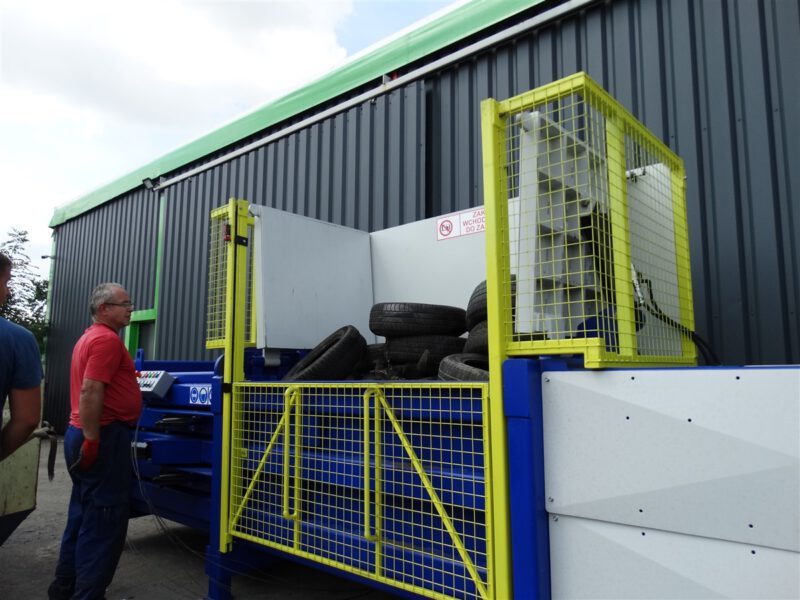

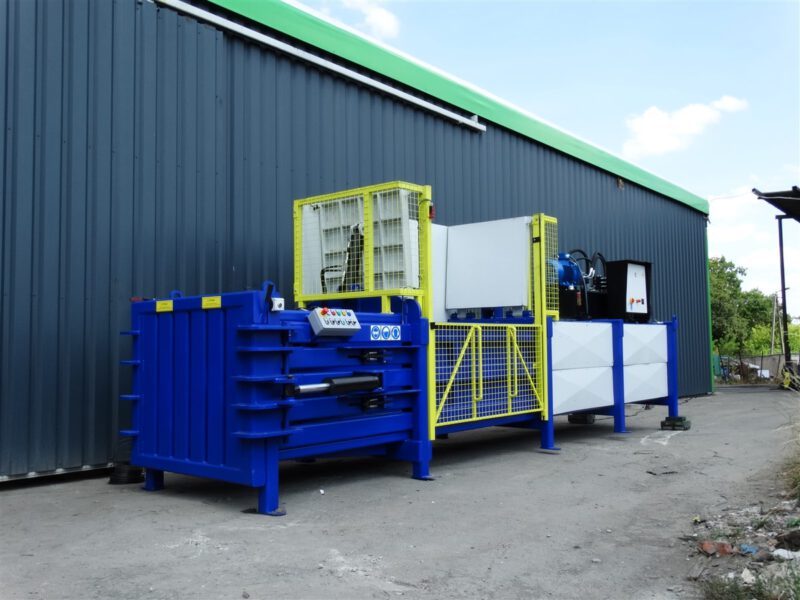

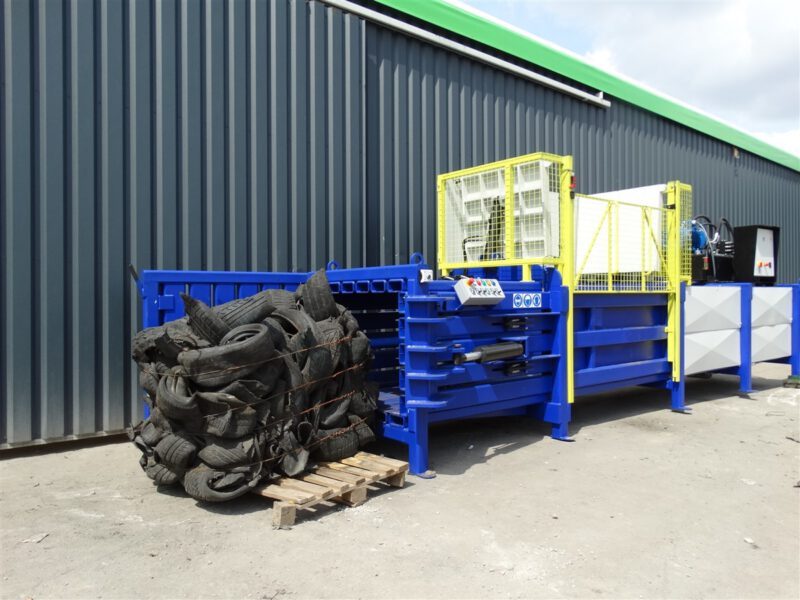

Semi-automatic baler, horizontal press with press flaps model 600 Cross dedicated to foam, tyres and other recyclable materials. Excellent baler in tyre recycling process – pyrolysis. The machine is also able to bale waste like paper, cardboard etc.



Technical parameters:

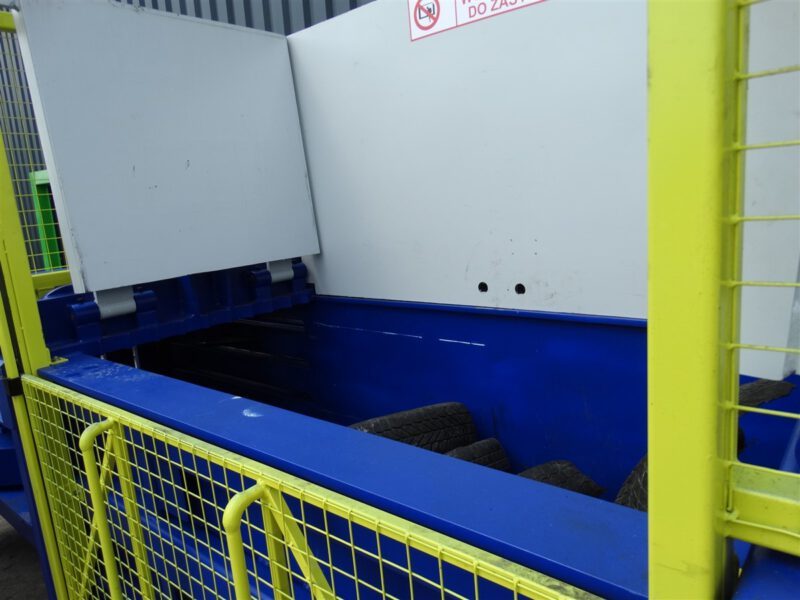

inlet size (height x width)1850 mm x 950 mm
bale dimensions1000 mm x 800 mm x 1000 – 1300 mm
bale weightfoam: 300 kg / foil: up tp 500 kg / cardboard: up to 400 kg
wire3,5 mm (minimum diameter)
number of wires9
binding directionhorizontal and vertical (4×5)
pressure210 bar
pomp size61 cc, 9 cc

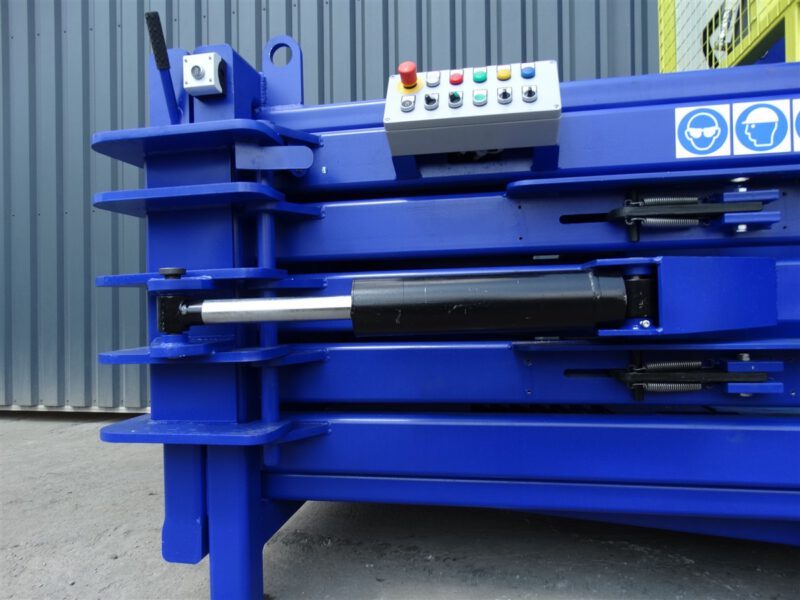

number of pistons2 + 2 extra pistons for pushing out the bale
pressure power50 tonnes

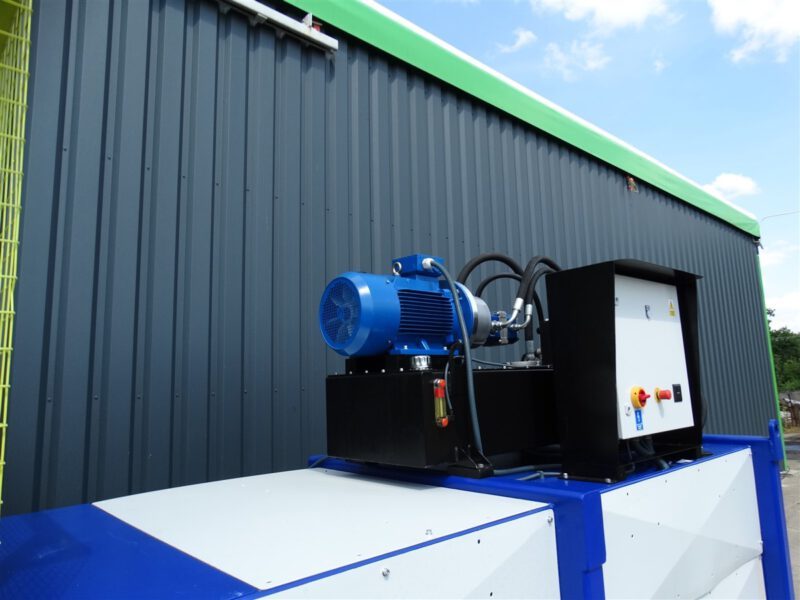

motor speed1440 rpm
standard pressing cycle15 kW / 70 seconds or 22 kW / 50 sec.
electricity35A (15 kW motor)
voltage415 V
inner electrical circuit24V DC

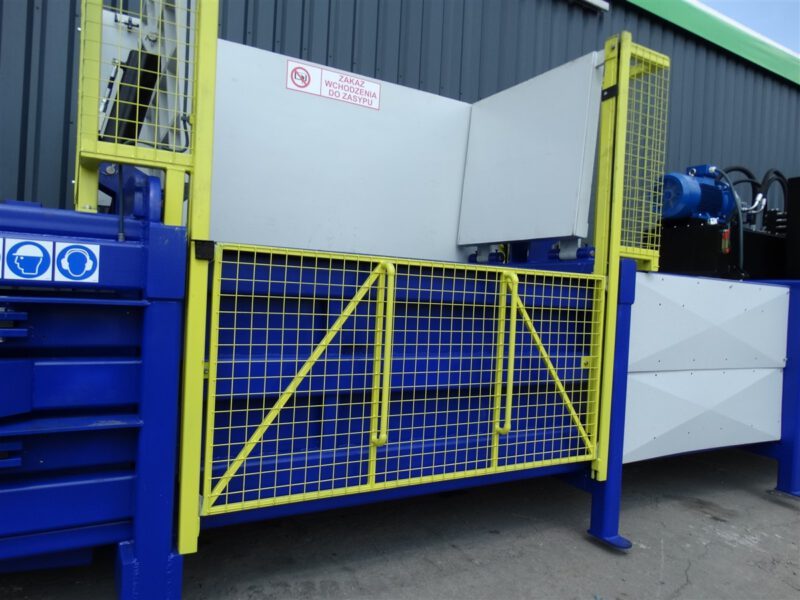

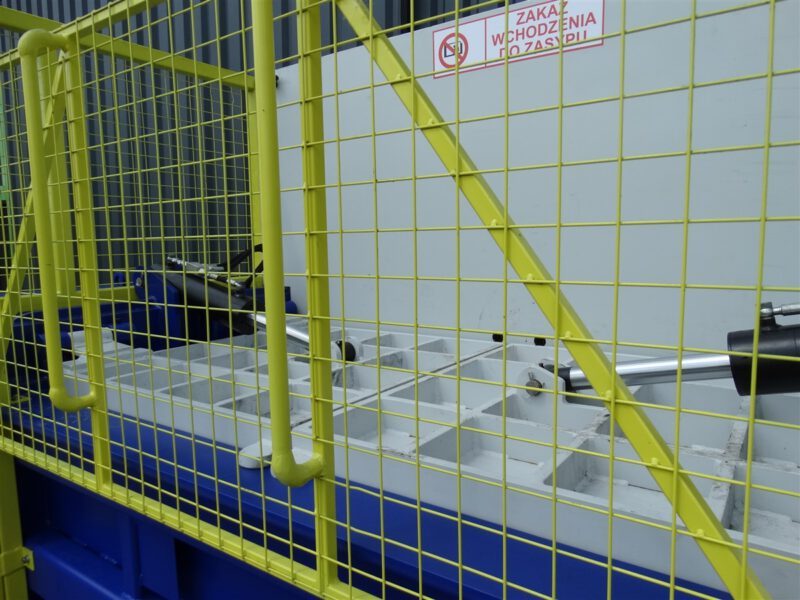

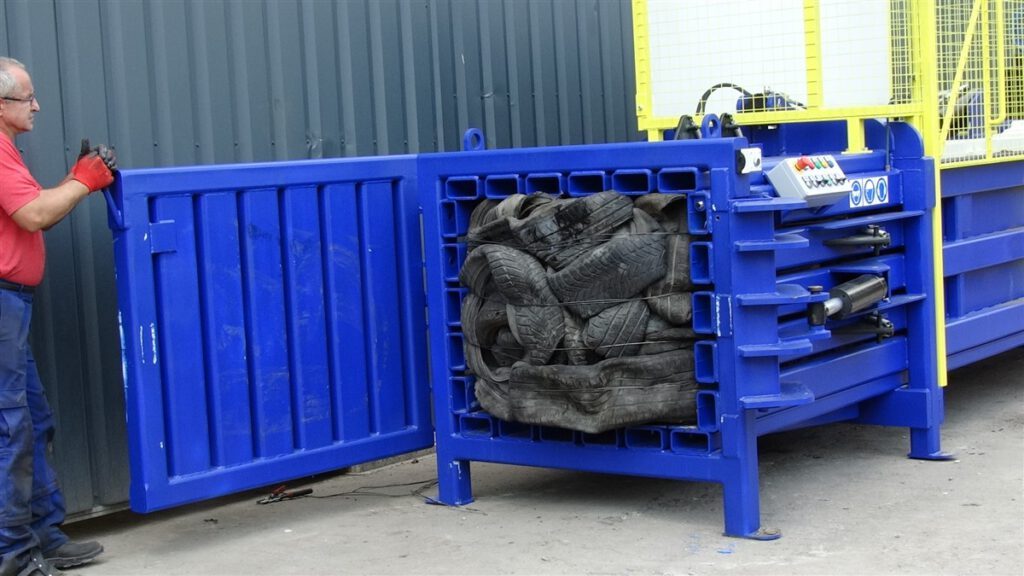

hydraulic system of opening and closing the doors

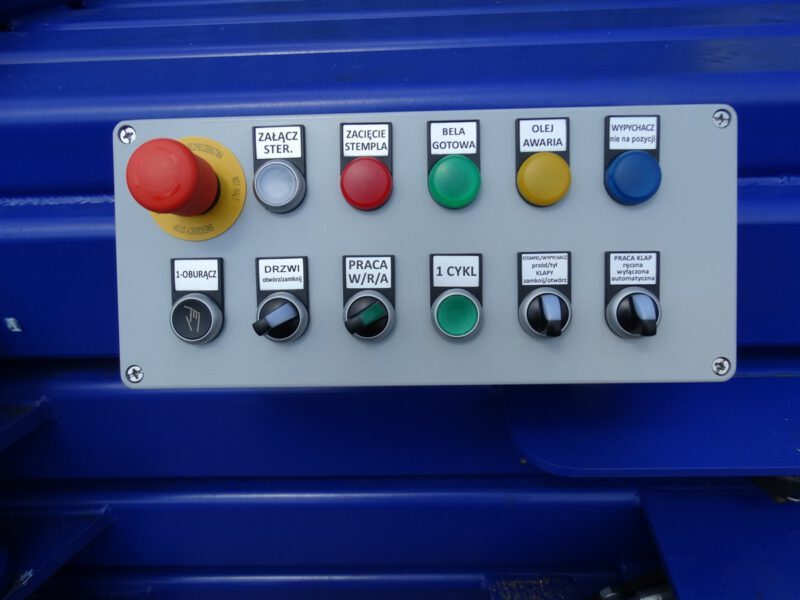

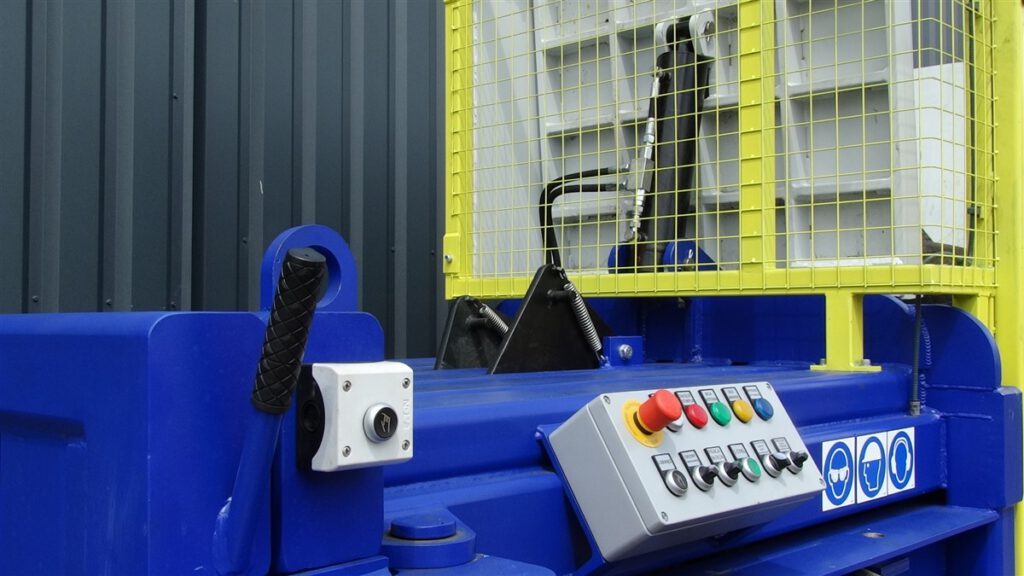

indicator of full bale and blocked bale
CE certificate
