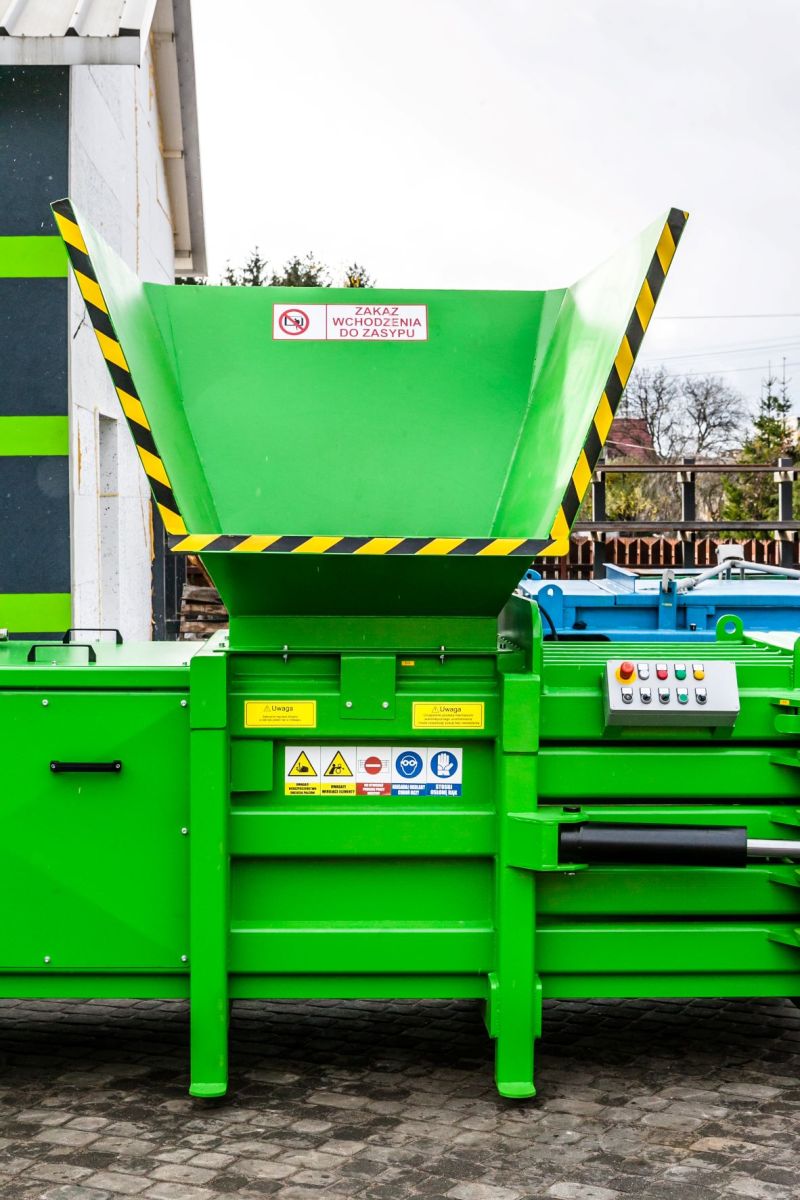

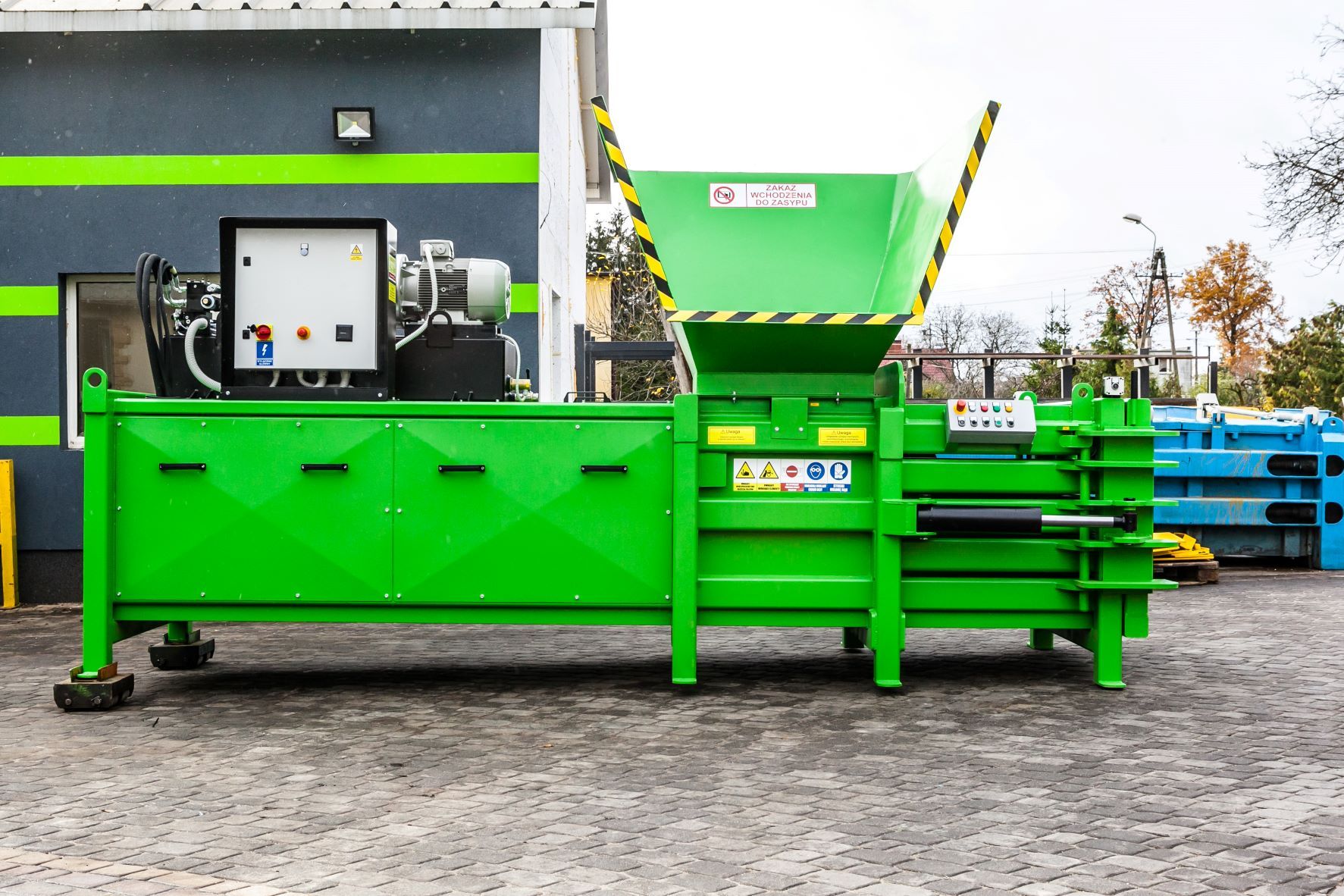

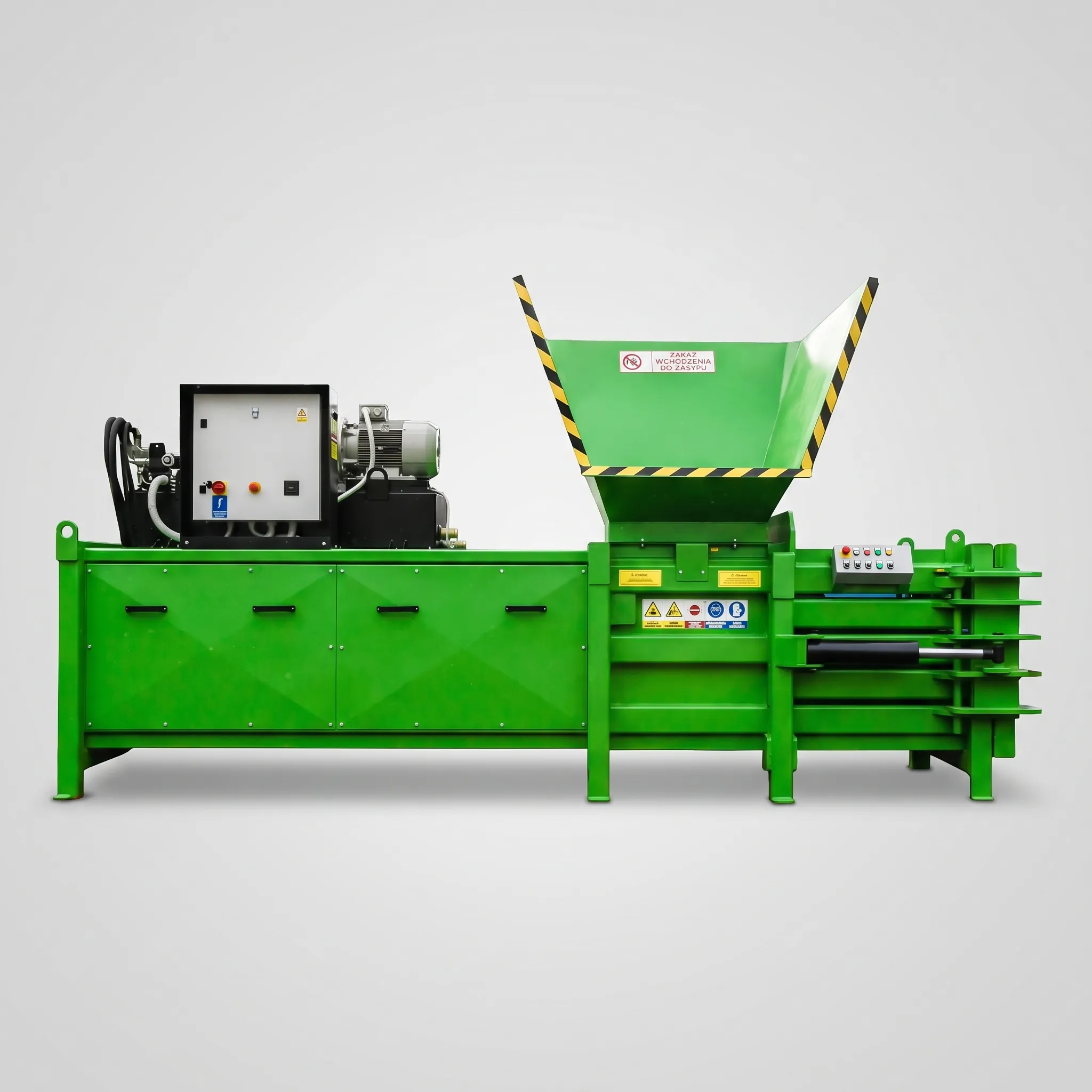

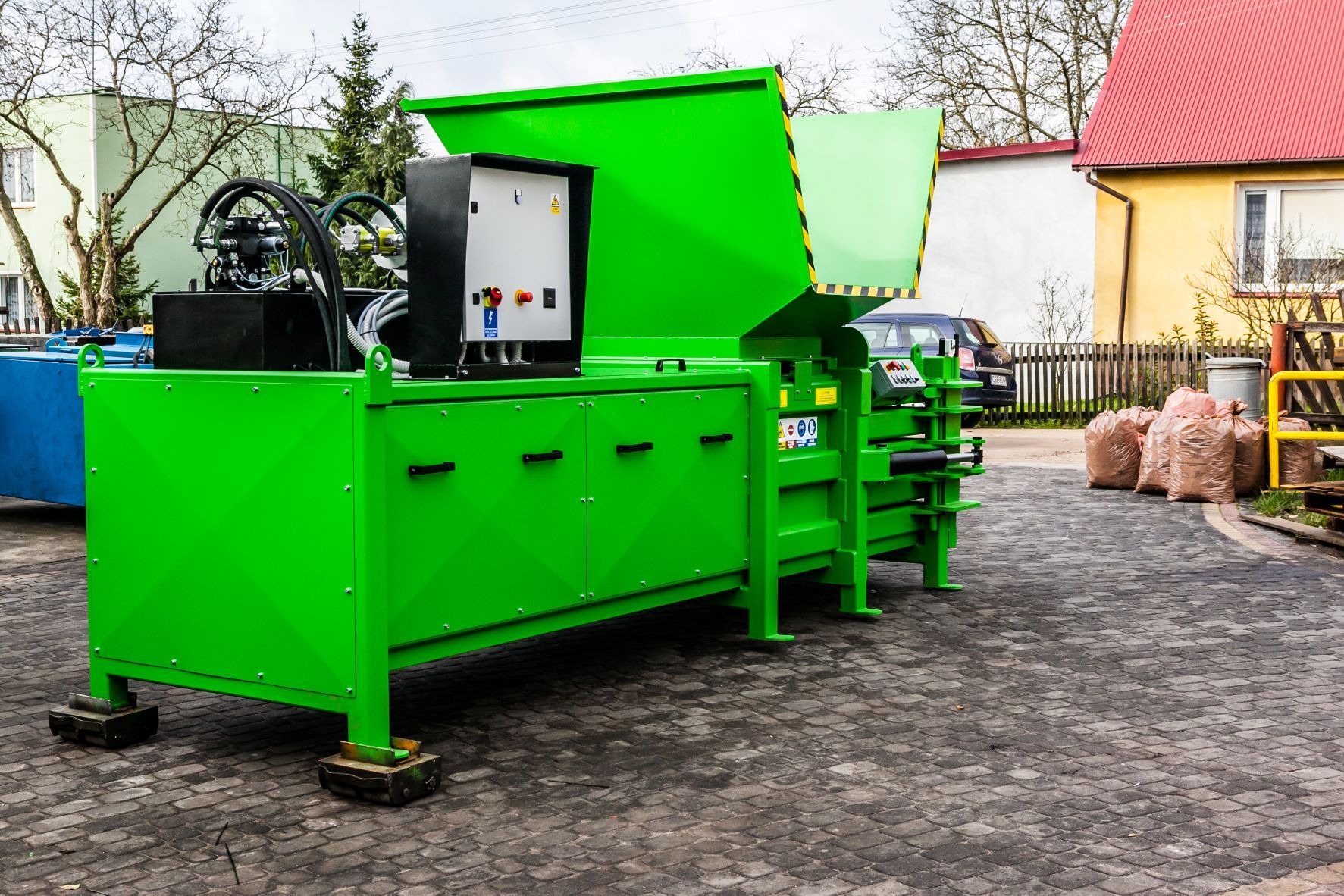

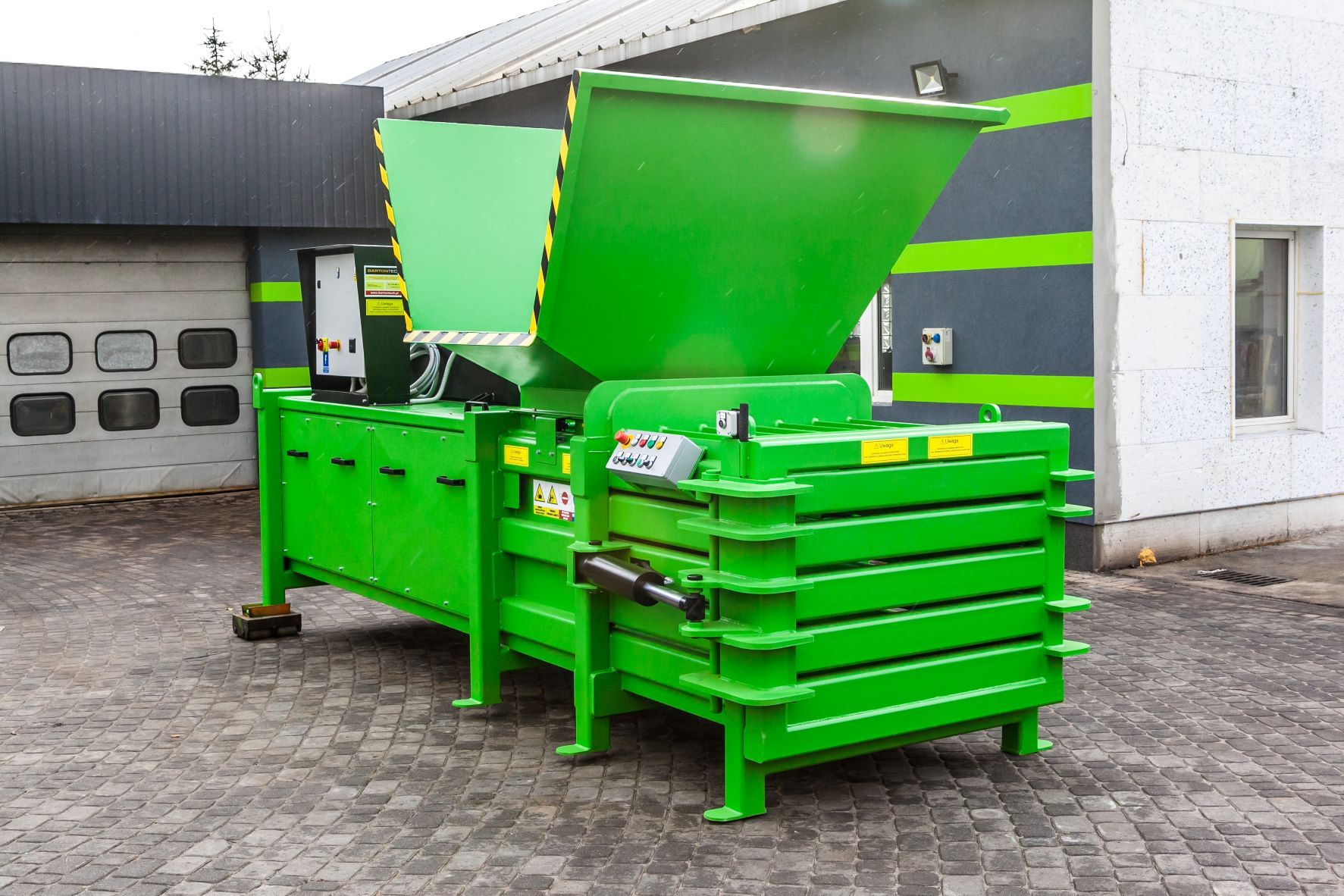

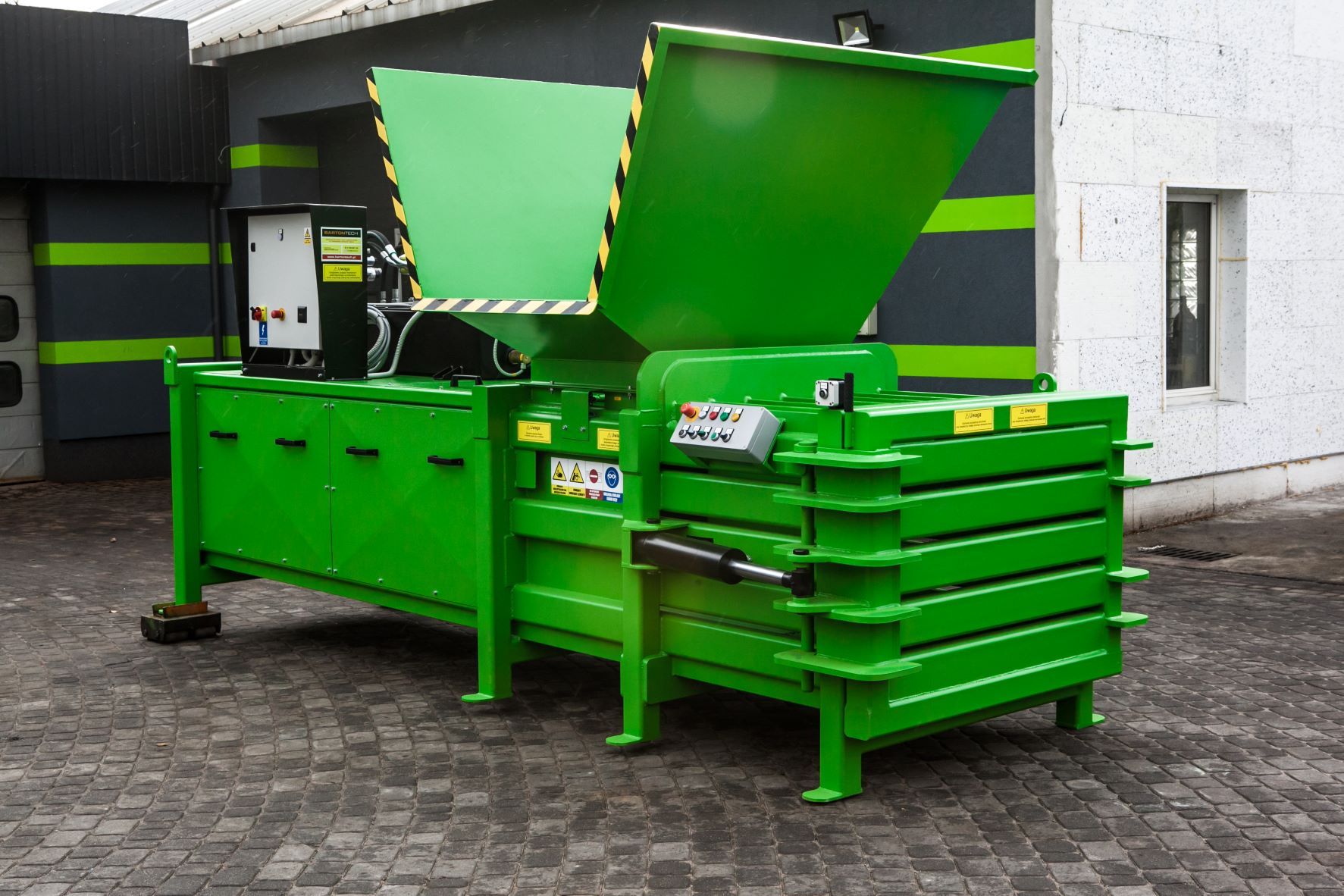

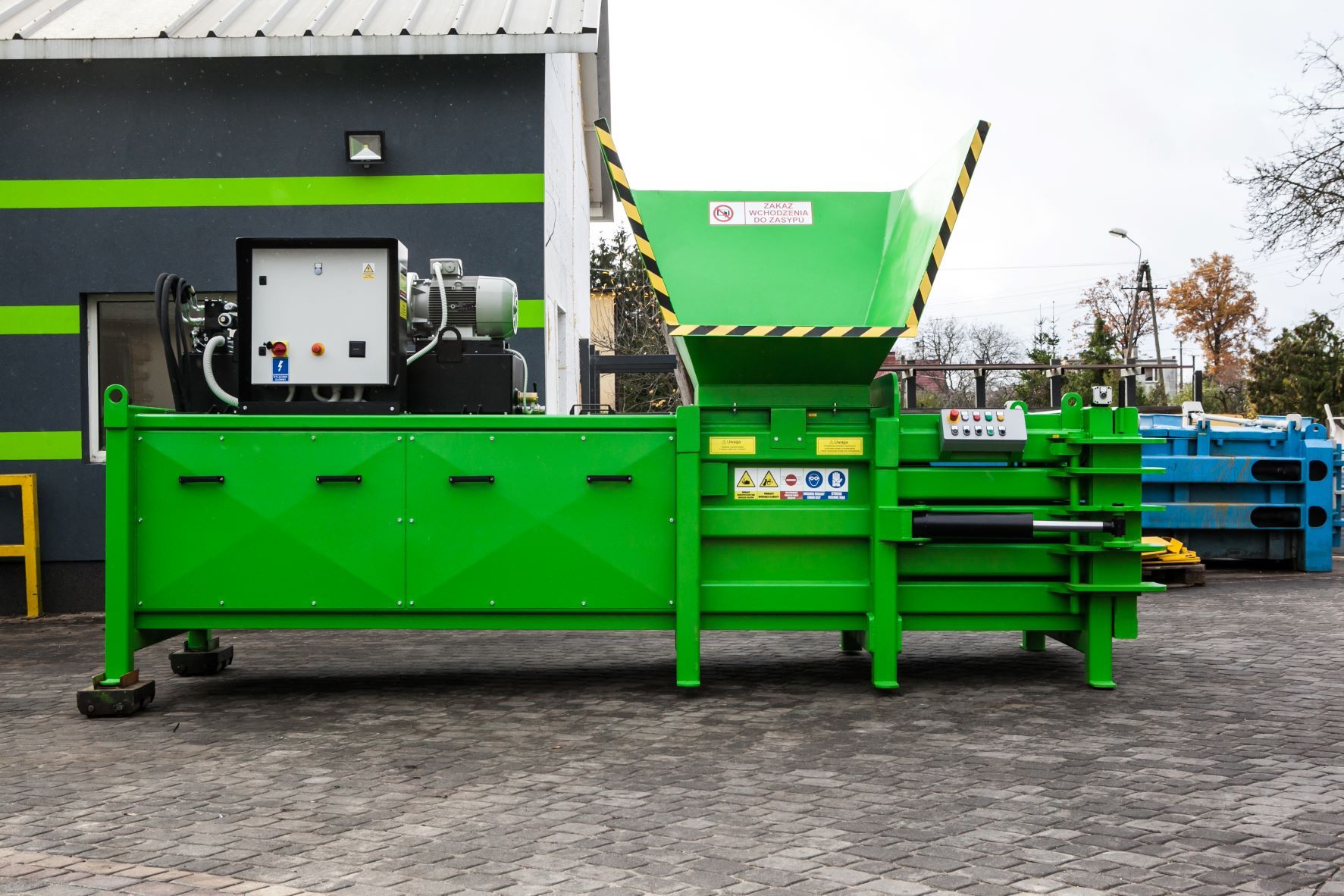

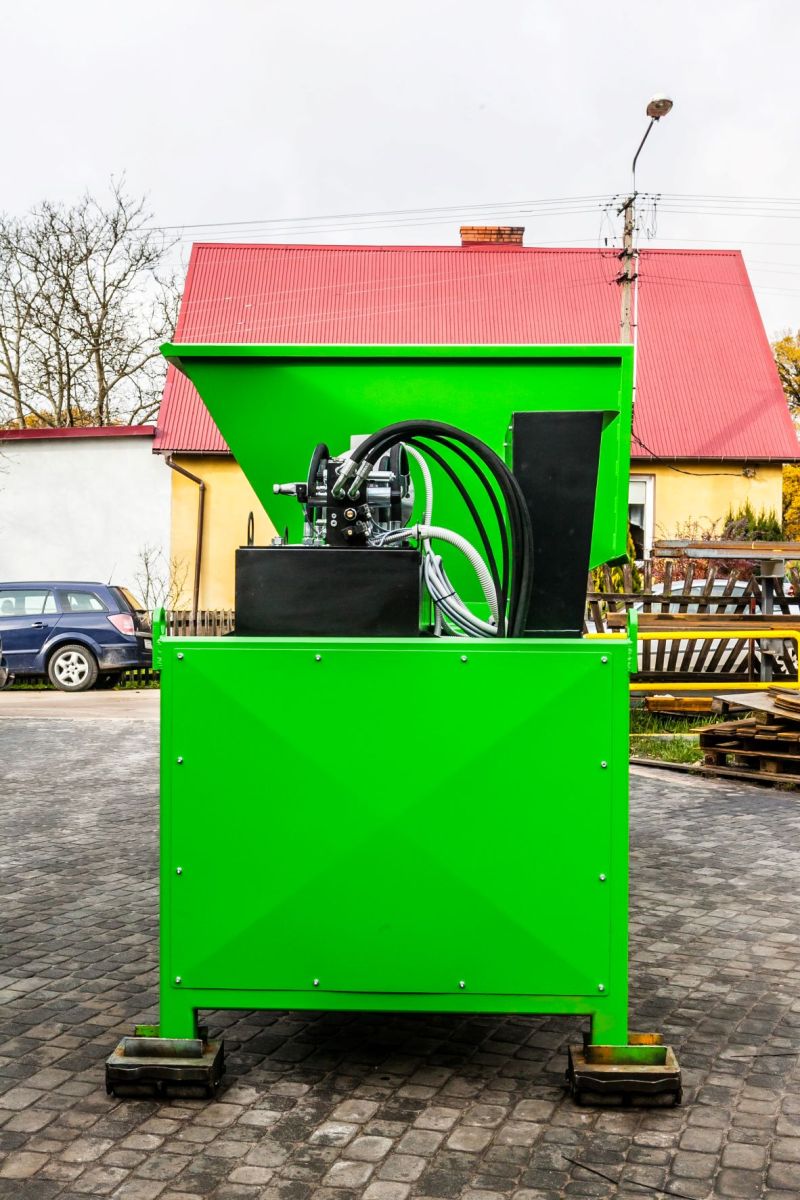

Bartontech Horizontal Baler 400 Plus: Advanced High-Capacity Baling
The Bartontech Horizontal Baler 400 Plus is an upgraded, heavy-duty baling press designed for facilities that demand superior throughput and relentless reliability. Engineered for logistics centers, large manufacturing plants, and high-volume recycling facilities, the 400 Plus model effortlessly handles massive amounts of cardboard, paper, PET bottles, and plastic film.
Key Features of the 400 Plus Model:
- Enhanced Processing Power: The “Plus” designation means increased pressing force and faster cycle times, allowing your facility to process higher volumes of waste without bottlenecks.
- Mill-Size, High-Density Bales: Produce perfectly squared, extremely dense bales that maximize the payload of standard transport trucks and sea containers, ensuring you get the best market value for your recyclables.
- Continuous Feeding Ready: Designed to work seamlessly with continuous feeding systems such as conveyor belts, cyclone systems, or automated bin lifters, drastically reducing manual labor.
- Built to Last: Constructed from premium, wear-resistant steel and equipped with top-tier hydraulic components to ensure uninterrupted 24/7 operation in the most demanding industrial environments.
- Operator Safety: Features an intuitive control panel and advanced safety interlocking systems to protect your workforce during daily operations.
Upgrade your waste management infrastructure with the robust Horizontal Baler 400 Plus and achieve maximum operational efficiency. Need detailed technical specifications, footprint dimensions, or automated tying options? Contact our engineering team today for a custom quote and professional consultation!
Technical parameters:
| Dimensions/ size of the baler (height x width x depth) | 2400 mm x 1750 mm x 4630 mm |
| Weight of the baler | 5000 kg |
| Inlet size (height x width) | 820 mm x 930 mm |
| Weight of a bale | 200 – 400 kg |
| Bale wiring wire | tape or string |
| Number of wires | 4 |
| Binding direction | horizontal |
| Capacity | 3 1 T/h at bulk weight 70 kg/m |
| Number of actuators | 2 |
| Crushing force | 50 tons MAX |
| Standard time of crushing cycle | 15 kW / 40 sec., 11 kW / 53 sec |
| Electric current | 27 A (11 kW motor) , 35A (15 kW motor) |
| Length of power supply cable | 6 m |
| Inner electrical circle | 24 V DC |
