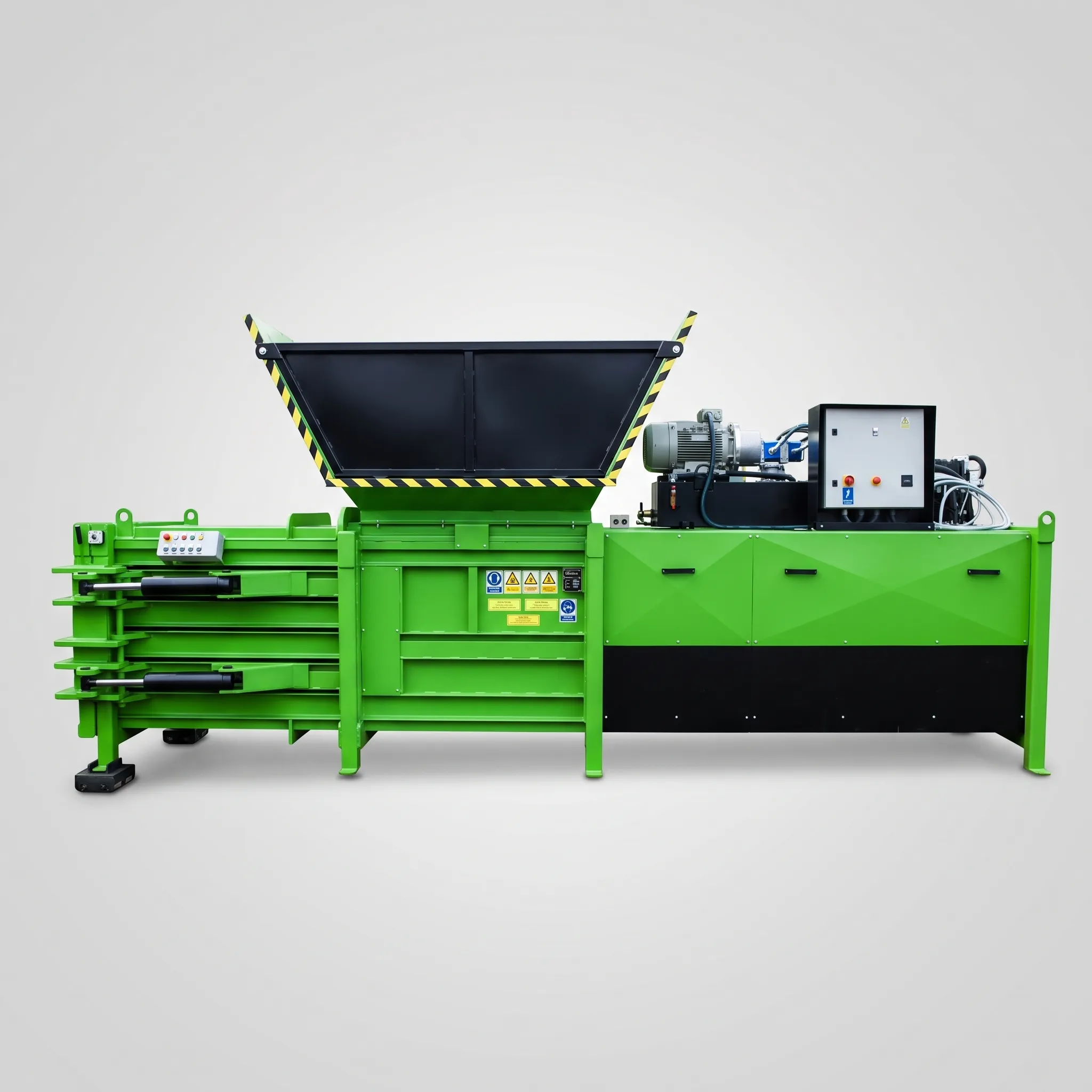

Bartontech Horizontal Baler 800 Short: Heavy-Duty Power, Compact Footprint
When you need the massive processing power of the 800-series but are restricted by limited floor space, the Bartontech Horizontal Baler 800 Short is the ultimate solution. This specialized industrial baling press has been engineered with a reduced overall length, making it perfect for manufacturing plants, urban recycling centers, and logistics hubs where warehouse space is at a premium. Despite its compact footprint, it delivers the exact same devastating compaction force as our standard heavy-duty models.
Key Features of the 800 Short Model:
- Space-Saving Design: The shortened structure allows the machine to fit into tight facility layouts and restricted halls without compromising on operational safety or accessibility.
- Uncompromised Pressing Force: Delivers the colossal power expected from the 800-series, effortlessly crushing large volumes of cardboard, paper, plastics, and MSW.
- Mill-Size, High-Density Bales: Continues to produce perfectly uniform, highly dense bales that maximize shipping container payloads, ensuring you achieve the highest return on investment.
- Automated Integration: Even with a reduced footprint, the 800 Short is fully compatible with automated continuous feeding systems, conveyors, and cyclone extractors to minimize manual labor.
- Industrial Durability: Constructed from heavy-gauge, wear-resistant steel to withstand continuous, rigorous industrial use over a long lifespan.
Don’t let space constraints limit your recycling capabilities. Maximize your throughput and optimize your facility’s layout with the Horizontal Baler 800 Short. Need exact footprint dimensions or advice on integration? Contact our technical sales team today for a customized consultation and quote!
Technical parameters:
| Dimensions / size of the baler (height x width x depth) | 2700 mm x 1700 mm x 5900 mm |
| Baler weight | 7200 kg |
| Inlet size (height x width) | 1370 mm x 950 mm |
| Bale dimensions (height x width x depth) | 1100 mm x 1000 mm x 1200 – 1400 mm |
| Bale weight | 800 – 1000 kg |
| Bale wiring | 3 mm – 3.9 mm |
| Number of wires | 5 |
| Binding direction | horizontal |
| Pressure | 210 bar |
| Pump size | 20 cc, 11.2 cc |
| Number of actuators | 2 |
| Crushing power | 75 tons |
| Motor speed | 1440 rpm |
| Electric current | 27A (11 kW motor), 35A (15 kW motor) |
| Electric voltage | 415V |
| Power cable length | 6 m |
| Internal electric circuit | 24V DC |
