Technical parameters

Technical specifications:

• Press force: 50 tonnes
• Unit pressure: 7.14 kg/cm²
• Channel cross-section: 1000 x 700 mm
• Bar weight: up to 500 kg

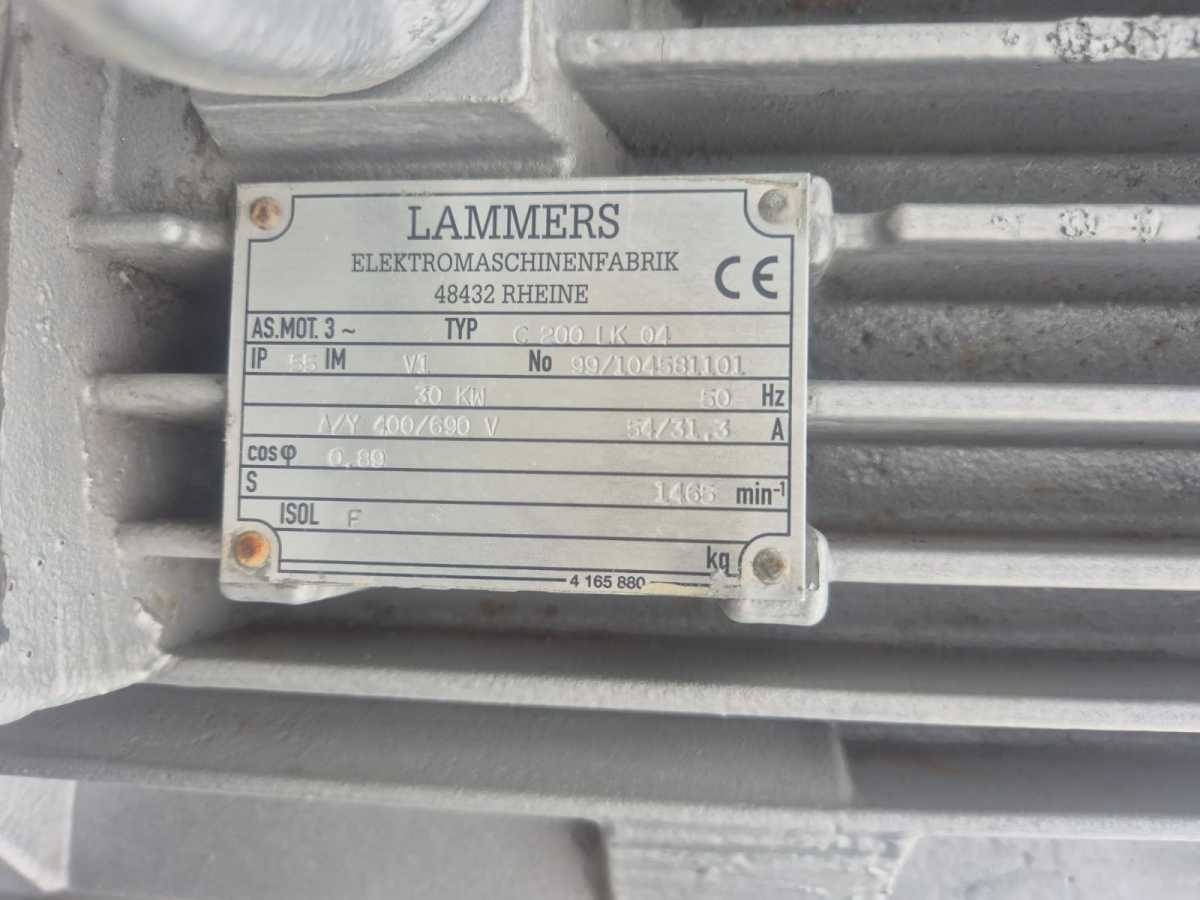

• Power supply: 400 V/ 30 kW
• Year of manufacture: 1999
• Number of ties: 3 horizontally
• Loading opening: 1250 x 950 mm
• Weight of machine: approx. 10 tonnes
• Tying: automatic wire tying

Throughput: max 135 m³/hour
Theoretical yield with 30 kg/m3 material: approx. 4 tonnes/hour
Theoretical yield with a material of density 60kg/m3: approx. 8 tons/hour
Theoretical yield with 100kg/m3 material: approx. 13.5 tonnes/hour

Description of function:

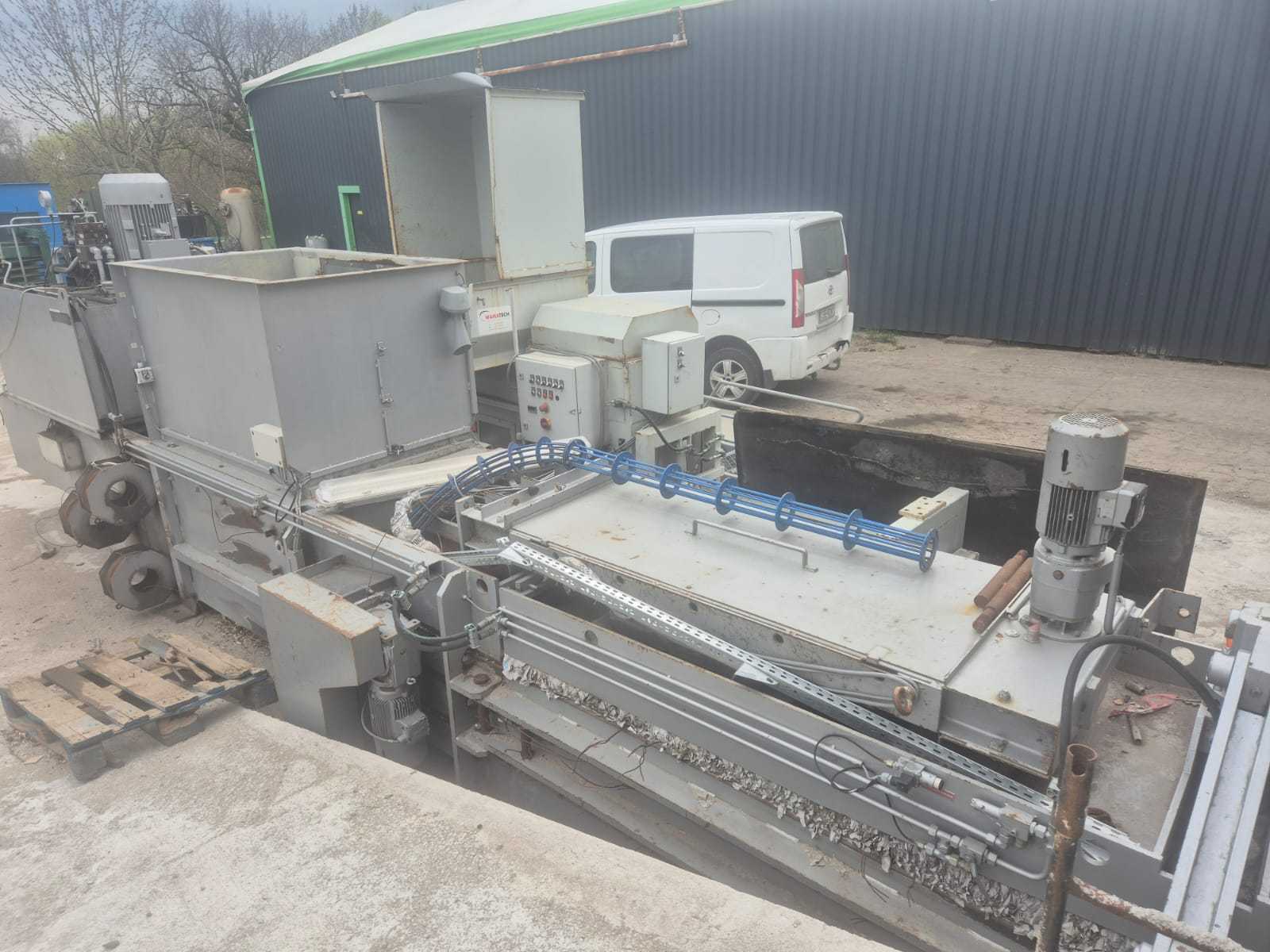

• Open hopper to allow filling by conveyor belt.
• Knives on press plate and press frame for cutting off excess raw material
• Automatic adjustment of the channel light
• Automatic wire bale tying
• Choice of finished bale length from the operator panel thanks to bale length counter

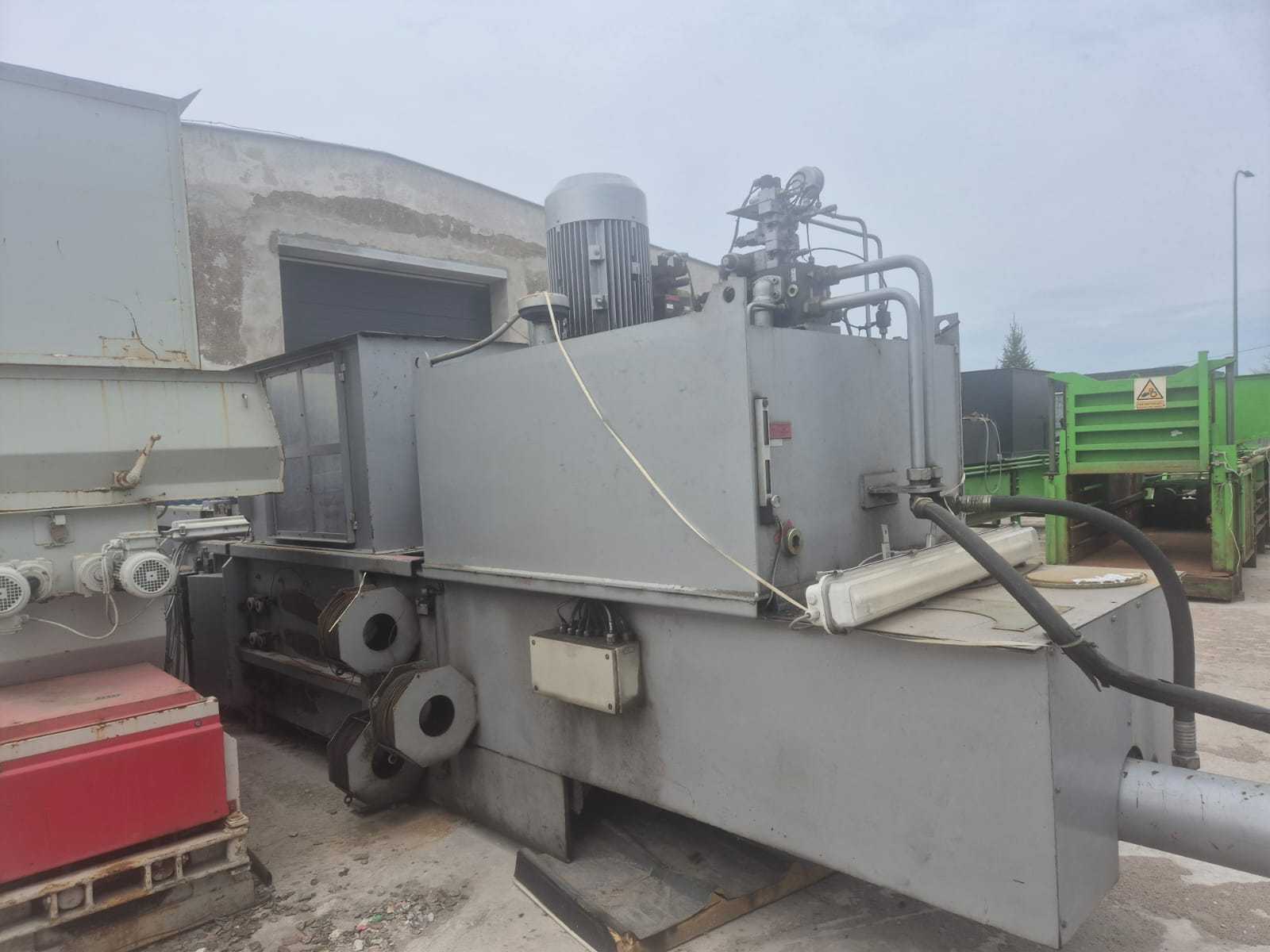

• Compact, low-noise hydraulic power pack
• Baler plate stably guided on eight large rollers
• Large bale chamber flaps for easy maintenance
