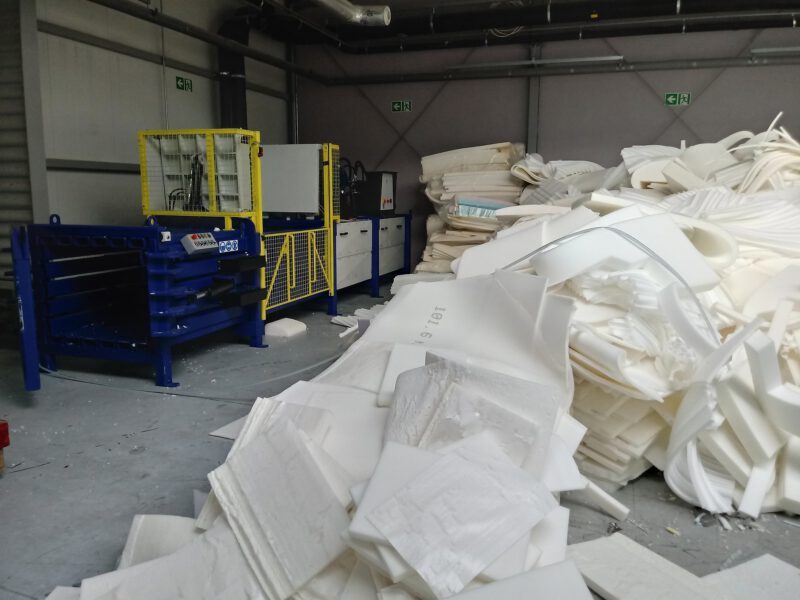

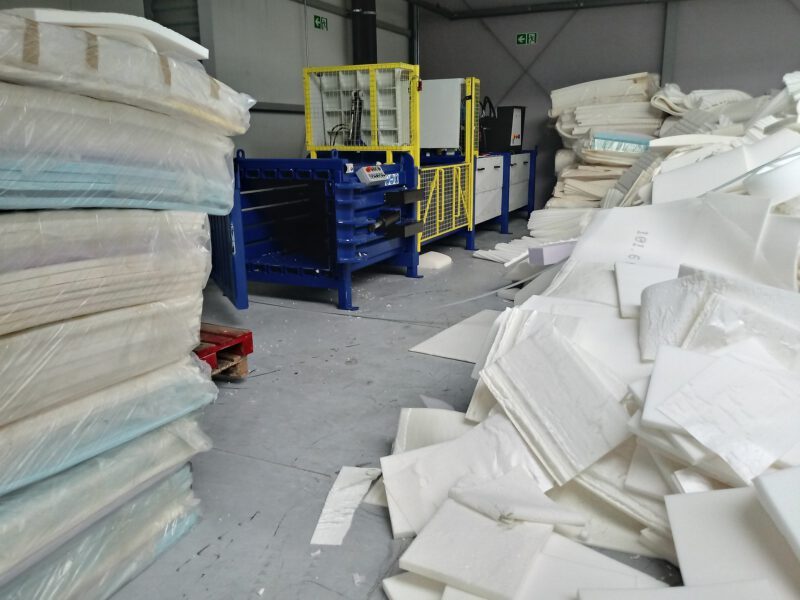

Semi-automatic baler, horizontal press with press flaps model 600 Cross dedicated to foam, tyres and other recyclable materials. Excellent baler in tyre recycling process – pyrolysis. The machine is also able to bale waste like paper, cardboard etc.
Technical parameters:
| inlet size (height x width) | 1850 mm x 950 mm |
| bale dimensions | 1000 mm x 800 mm x 1000 – 1300 mm |
| bale weight | foam: 300 kg / foil: up tp 500 kg / cardboard: up to 400 kg |
| wire | 3,5 mm (minimum diameter) |
| number of wires | 9 |
| binding direction | horizontal and vertical (4×5) |
| pressure | 210 bar |
| pomp size | 61 cc, 9 cc |
| number of pistons | 2 + 2 extra pistons for pushing out the bale |
| pressure power | 50 tonnes |
| motor speed | 1440 rpm |
| standard pressing cycle | 15 kW / 70 seconds or 22 kW / 50 sec. |
| electricity | 35A (15 kW motor) |
| voltage | 415 V |
| inner electrical circuit | 24V DC |
| hydraulic system of opening and closing the doors | |
| indicator of full bale and blocked bale | |
| CE certificate |
